Sensor, Active Damping: Installation: Rear

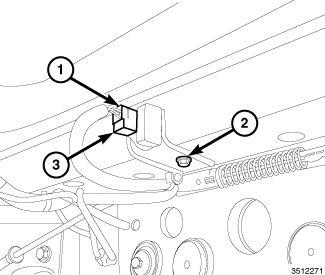

GC0153850Courtesy of CHRYSLER GROUP, LLC
  1. Position the sensor, install the sensor retaining bolt (2) and tighten to proper specifications. Refer to TORQUE SPECIFICATIONS  .
  2. Connect the wiring harness connector (1).
  3. Seat the terminal locking tab (3).
  4. Remove the supports and lower the vehicle.
