Sensor, Active Damping: Installation: Front

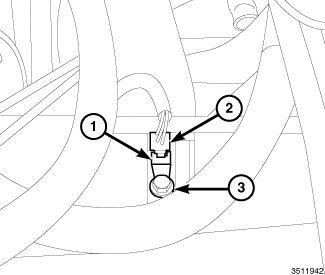

GC0153849Courtesy of CHRYSLER GROUP, LLC
  1. Position the sensor, install the sensor retaining bolt (3) and tighten to proper specifications. Refer to TORQUE SPECIFICATIONS  .
  2. Connect the wiring harness connector (2).
  3. Seat the terminal locking tab (1).
  4. Remove the supports and lower the vehicle.
