Sensor, Active Damping: Description

Courtesy of CHRYSLER GROUP, LLC

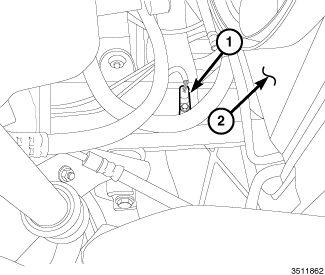

There are three active damping sensors (1) used in the Active Damping System (ADS). The two front sensors are located on the inside of the frame rail directly behind the radiator and one is mounted in the rear underside of the vehicle near the park brake cable tensioner. The sensors are 3-wire, 5-volt reference sensors wired directly to the Active Damping Control Module (ADCM).
