Knuckle, Steering: Installation

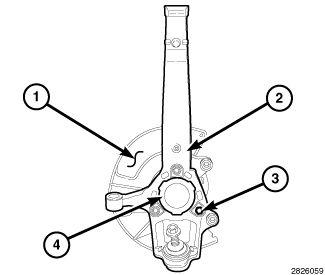

GC0146038Courtesy of CHRYSLER GROUP, LLC
  1. Position the brake shield (1) on the knuckle (2).
  2. Position the hub/bearing (4) on the knuckle (2), install the 3 hub bearing mounting bolts (3) and tighten to 105 N. m (78 ft. lbs.).

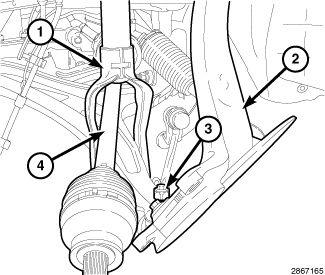

    GC0146178Courtesy of CHRYSLER GROUP, LLC
  3. Position the knuckle (2) on the lower ball joint and install the lower ball joint nut (3) and tighten to 170 N. m (125 ft. lbs.).
  4. If equipped with four wheel drive, install halfshaft (4) in the axle using care not to damage the seals, and through the hub/bearing. Verify halfshaft has engaged.
    GC0117739Courtesy of CHRYSLER GROUP, LLC
  5. Support the outside of the lower control arm with a suitable holding fixture, and raise to position the upper ball joint (2) into the knuckle (3).
  6. With the holding fixture holding the suspension at normal ride height, install the upper ball joint nut (4) and tighten to 95 N. m (70 ft. lbs.).
    GC0173647Courtesy of CHRYSLER GROUP, LLC
  7. Position the outer tie rod end (3) to the steering knuckle, install the nut (1) and tighten to 95 N. m (70 ft. lbs.).
  8. Install the brake rotor. Refer to ROTOR, BRAKE, INSTALLATION .
  9. Route and attach speed sensor wiring to the knuckle.
  10. Install the wheel speed sensor into the knuckle (2), install the mounting bolt (1) and tighten to 10.7 N. m (95 in. lbs.).
  11. If equipped with four wheel drive, install the halfshaft nut and tighten to 310 N. m (229 ft. lbs.).
  12. Install the tire and wheel assembly. Refer to WHEELS, STANDARD PROCEDURE .
  13. Remove the supports and lower the vehicle.
