Valve Block, Compressor Assembly: Installation
WARNING:
All pressurized air suspension components contain high pressure air (up to 220 psig). Use extreme caution when inspecting for leaks. Wear safety goggles and adequate protective clothing when inspecting or servicing the air suspension system. A sudden release of air under this amount of pressure can cause possible serious or fatal injury.
WARNING:
Before performing any service on the air suspension system, the system must be disabled to prevent the system from changing ride height. Before any given component is to be serviced it must be deflated. Servicing the air suspension system without the system disabled, or with pressure in any specific component, can cause possible serious or fatal injury.

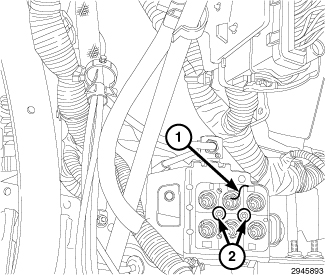

- Position the valve block (1), install the valve block retaining screws (2) and tighten to 4 N.m (36 in. lbs.).

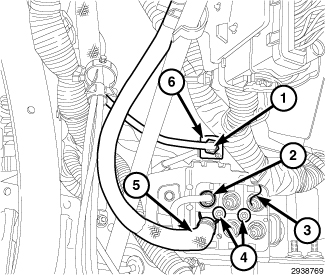

- Install the hose (5) and the five line/fittings (2) to the face of the valve block and tighten the fittings to 3.5 N.m (31 in. lbs.).NOTE:
Fascia removed for clarity.

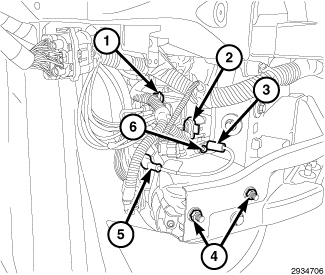

- Connect the valve block wiring harness connector (2).
- Install the RF wheel splash shield. Refer to INSTALLATION - FRONT .
- Install the RF tire and wheel. Refer to WHEELS, STANDARD PROCEDURE .
- Connect the negative battery cable. Refer to CABLES, BATTERY, INSTALLATION .
- With a scan tool, and using Air Suspension Refill Tool - (special tool #10247B, Tool, Air Suspension Refill), perform the Complete System Fill procedure. Refer to AIR SUSPENSION, STANDARD PROCEDURE .
- With a scan tool, using the routines under the Air Suspension Control Module (ASCM), perform the following:
- Run the Air Mass Calculation routine on the air suspension system.
- If necessary, add to the system or deflate to atmosphere using the ASCM routines, then repeat the Air Mass Calculation routine again until system is Normal.
- Enable the air suspension system.
- Perform the ASCM Verification Test. Refer to STANDARD PROCEDURE - ASCM VERIFICATION TEST .
