Antenna, Remote Start: Description

Courtesy of CHRYSLER GROUP, LLC

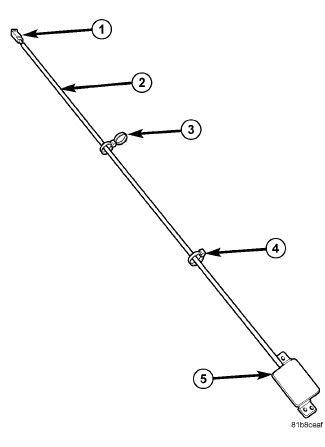

The Remote Start Antenna Module Assembly consists of an electrical connection to the Remote Frequency Hub (RFH) (1), a length of coax cable (2), mounting clips, or tie wraps (3) and (4), and a control module/antenna (5). The antenna is located behind the rear cargo D pillar assembly.
