Outlet, Power, 115 V: Installation

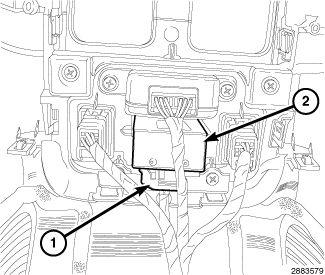

GC0146189Courtesy of CHRYSLER GROUP, LLC
  1. Insert the 115v power outlet into the panel.
  2. Connect the wiring harness connector (1) onto the 115v power outlet (2).
    GC0146188Courtesy of CHRYSLER GROUP, LLC
  3. Install the HVAC duct (1) onto the center console rear panel (2).
  4. Install the center console rear panel.
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
