Sensor, Wheel Speed, Front: Installation

NOTE:

Wheel removed for clarity.

Courtesy of CHRYSLER GROUP, LLC

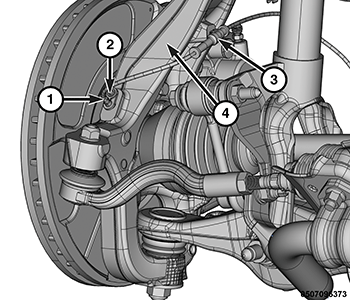

1. Position the wheel speed sensor (1) in the knuckle (4), install the mounting bolt (2), and tighten to 10.7 N.m (95 in. lbs.).
2. Attach the sensor wire routing clips to the brake hose.
3. Attach the wheel speed sensor wiring (3) to the knuckle (4).

   Courtesy of CHRYSLER GROUP, LLC

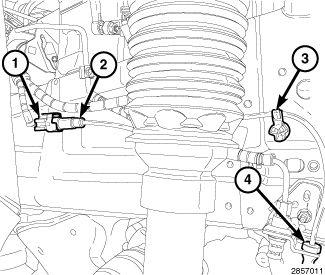

4. Connect the sensor electrical connector (1).
5. Attach the wheel speed sensor wiring routing clips (2, 3) to the body.
6. Attach the wheel speed sensor wiring (4) to the brake flex hose bracket.
7. Remove the supports and lower vehicle.
