Switch, Lumbar Control: Removal
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
NOTE:
Left hand drive model shown. Right hand drive model similar.
- Position the appropriate seat fully forward.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

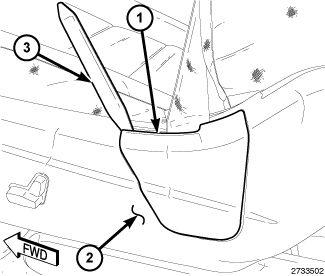

- Remove the seat belt anchor trim panel (1) from the outboard seat cushion side trim panel (2) using Trim Stick (special tool #C-4755, Trim Stick) (3) or equivalent.NOTE:
It is not necessary to remove the seat belt anchor from the seat when servicing the power lumbar support switch.
- Remove the screw (1) securing the seat cushion side trim panel (2) to the seat frame (3).

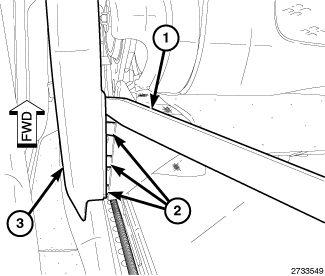

- Using Trim Stick (special tool #C-4755, Trim Stick) (1) or equivalent, carefully disengage the tabs (2) securing the seat cushion side trim panel (3) to the rear of the seat.
- Slide the seat cushion side trim panel (1) forward to disengage the trim panel from the side of the seat.
- Position the seat cushion side trim panel to gain access to the back of the power lumbar support switch (4).
- Using Trim Stick (special tool #C-4755, Trim Stick) or equivalent, carefully disengage the retaining tabs (3 and 5) securing the power lumbar support switch to the seat cushion side trim panel.
- Disconnect the power lumbar support switch wiring harness connector (2) and remove the switch.
