Display-Screen Center Stack (Standard) Connector End View (D2996A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 30700-1080

Part Description: Not Available

Connector No: D2996A

Option: Standard

Repair Kit Part Number: 68499394AA

Cavity Count: 8

Fig 1: Display-Screen Center Stack Connector End View (Standard)

Courtesy of CHRYSLER

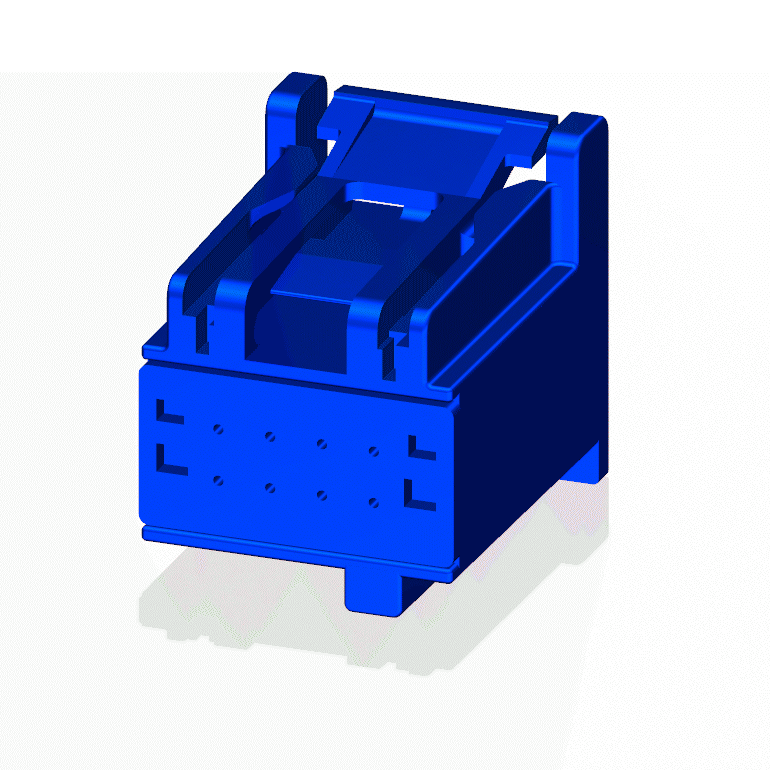

Fig 2: Display-Screen Center Stack Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Display-Screen Center Stack Wire Insertion View (Standard)

Courtesy of CHRYSLER

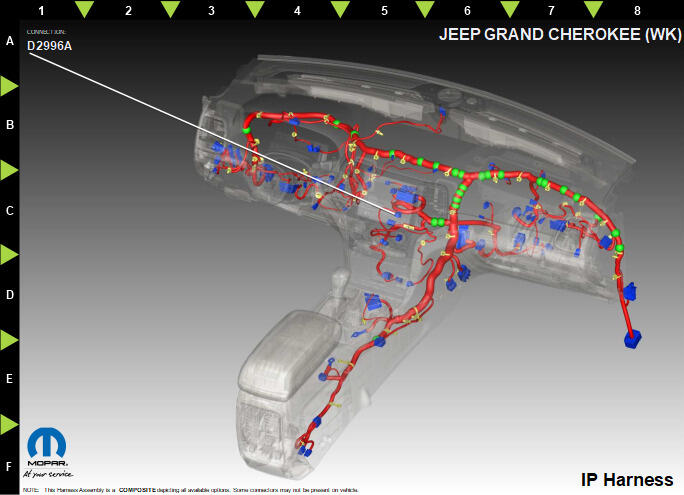

Fig 4: Display-Screen Center Stack Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A933	RD	0.75	FUSED B(+)	N/A
2	D267	DG	0.35	CAN IHS (+)	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	D266	WH/OG	0.35	CAN IHS (-)	N/A
7	N0	NA	0	NO CONNECT	N/A
8	Z912	BK/BU	0.75	GROUND	N/A
