Module-Radio-Freq Hub C1 (Standard) Connector End View (D2665A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 2272010-1

Part Description: Not Available

Connector No: D2665A

Option: Standard

Repair Kit Part Number: 68443742AA

Cavity Count: 16

Fig 1: Module-Radio-Freq Hub C1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Radio-Freq Hub C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Radio-Freq Hub C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

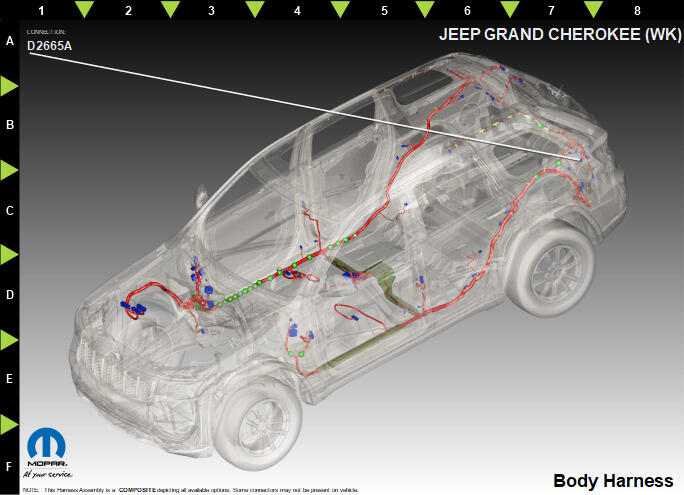

Fig 4: Module-Radio-Freq Hub C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F20	PK/WH	0.50	IGNITION RUN/START CONTROL OUTPUT	N/A
2	T824	YE/DB	0.50	TRS PARK SIGNAL	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	F892	PK/BU	0.75	IGNITION KEY-IN SIGNAL	N/A
6	Z923	BK	0.75	GROUND	N/A
7	N0	NA	0	NO CONNECT	N/A
8	A910	RD	0.75	FUSED B(+)	N/A
9	G201	VT/BU	0.35	IGNITION SWITCH POSITION SIGNAL	N/A
10	D122	WH/GN	0.35	SECURITY K LINE COMMUNICATION	N/A
11	D40	YE	0.35	CAN C (-)	N/A
12	D39	DB	0.35	CAN C (+)	N/A
13	N0	NA	0	NO CONNECT	N/A
14	D410	OG/PK	0.35	LIN KIN	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
