Module-Memory Seat C1 (Standard) Connector End View (D3873A)

Harness-Family: Seat_Cshn_Driver

Color: BLACK

Gender: FEMALE

Part Number: 772-715-501

Part Description: CONNECTOR

Connector No: D3873A

Option: Standard

Repair Kit Part Number: 68440506AA

Cavity Count: 14

Fig 1: Module-Memory Seat C1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Memory Seat C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Memory Seat C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

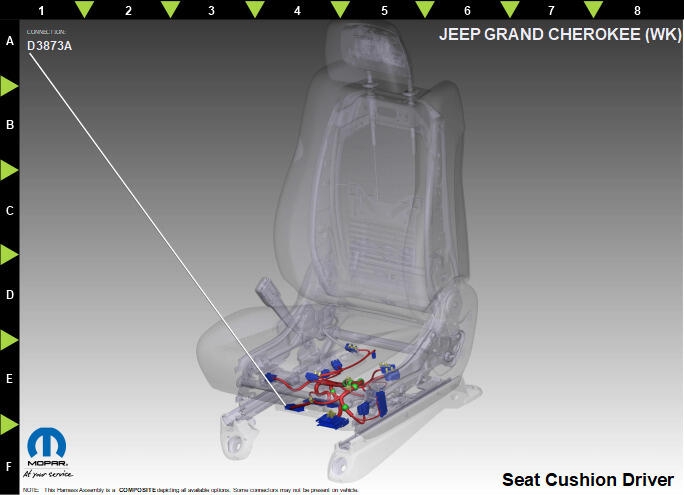

Fig 4: Module-Memory Seat C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
3	P153	BG/DG	1.0	TILT STEERING MOTOR UP/DOWN DRIVER	N/A
4	P157	BU/BG	1.0	TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER	N/A
5	D166	WH	0.35	CAN IHS (-)	N/A
6	P953	DG/BG	1.0	STEERING MOTOR COMMON	N/A
7	D165	WH/BU	0.35	CAN IHS (+)	N/A
8	A942	RD	2.0	FUSED B(+)	N/A
10	Z916	BK	2.0	GROUND	LHD
10	Z919	BK	2.0	GROUND	RHD
11	P152	BG/BU	0.35	TELESCOPE STEERING FORWARD/REARWARD POSITION SENSE	N/A
12	G914	VT/GY	0.35	SENSOR GROUND	N/A
13	P151	BG/OG	0.35	TILT STEERING UP/DOWN POSITION SENSE	N/A
