Module-Fuel Pump (6.2L) Connector End View (D6602A)

Harness-Family: Fuel_Tank

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 54200609

Part Description: Not Available

Connector No: D6602A

Option: 6.2L

Repair Kit Part Number: 05013985AA

Cavity Count: 6

Fig 1: Module-Fuel Pump Connector End View (6.2L)

Courtesy of CHRYSLER

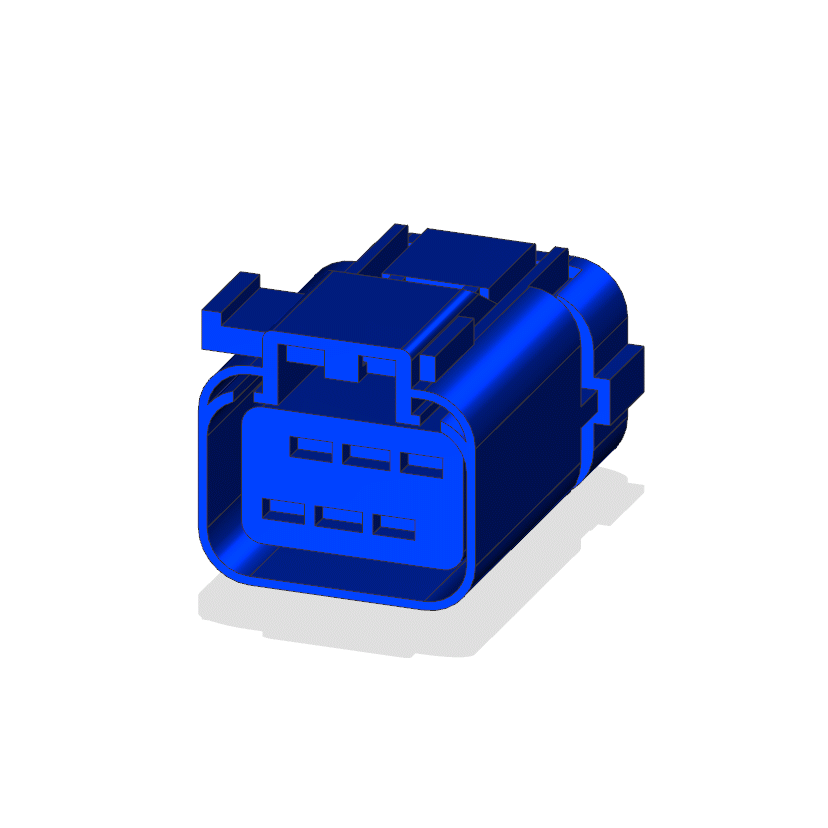

Fig 2: Module-Fuel Pump Isometric View (6.2L)

Courtesy of CHRYSLER

Fig 3: Module-Fuel Pump Wire Insertion View (6.2L)

Courtesy of CHRYSLER

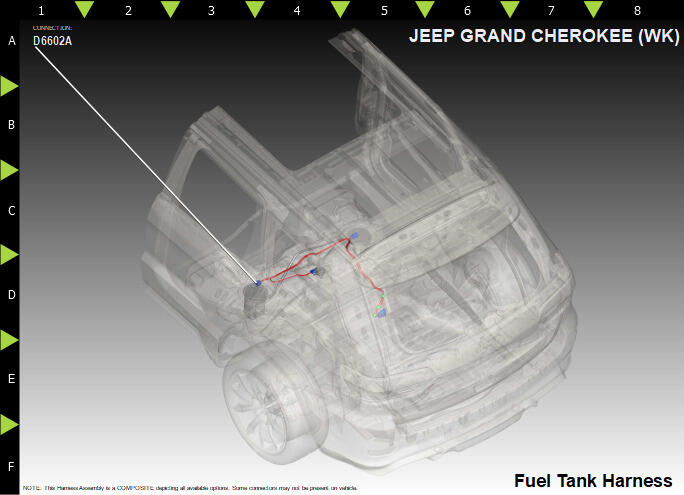

Fig 4: Module-Fuel Pump Component Location View (6.2L)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N14	VT/BU	3.0	FUEL PUMP RETURN	6.2L ONLY
2	N214	GY/BK	3.0	FUEL PUMP 2 GROUND	6.2L ONLY
3	N4	DB/WH	0.50	FUEL LEVEL SENSOR SIGNAL	6.2L
4	G109	BK	0.50	FUEL LEVEL SENSE RETURN	6.2L
5	N13	DB/OG	3.0	FUEL PUMP PWM CONTROL	N/A
6	N213	GY/OG	3.0	FUEL PUMP 2 CONTROL	N/A
