Module-Emergency Assistance C3 (Standard) Connector End View (D3115C)

Harness-Family: IP

Color: VIOLET

Gender: FEMALE

Part Number: 59Z006-T00-D

Part Description: Not Available

Connector No: D3115C

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 1

Fig 1: Module-Emergency Assistance C3 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Emergency Assistance C3 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Emergency Assistance C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

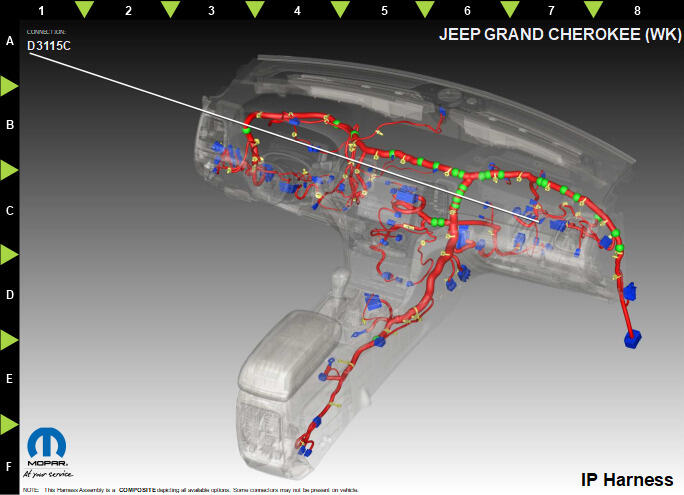

Fig 4: Module-Emergency Assistance C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D7	BK	1.0	CELLULAR ANTENNA SIGNAL	N/A
