Module-EPS C2 (Standard) Connector End View (D2777B)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 33471-0306

Part Description: MX150 CONNECTOR ASSEMBLY W/CPA

Connector No: D2777B

Option: Standard

Repair Kit Part Number: 68358151AA

Cavity Count: 3

Fig 1: Module-EPS C2 Connector End View (Standard)

Courtesy of CHRYSLER

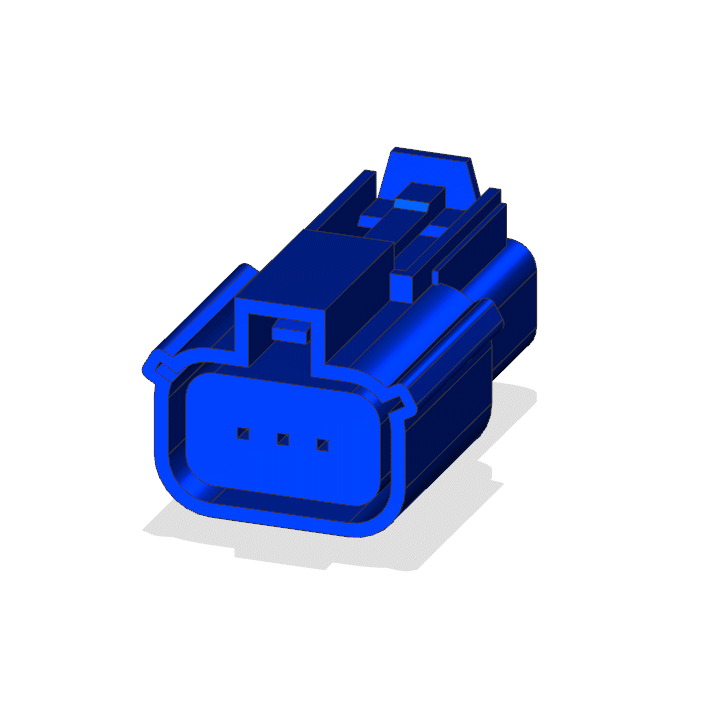

Fig 2: Module-EPS C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-EPS C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

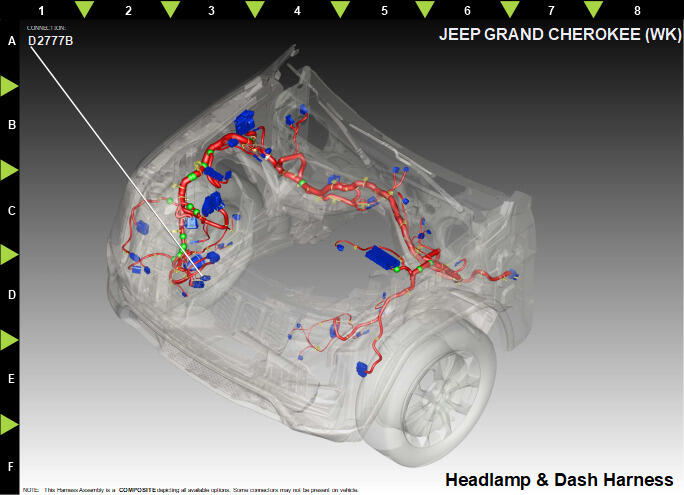

Fig 4: Module-EPS C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D138	YE	0.50	CAN C (-)	N/A
2	D139	YE/BN	0.50	CAN C (+)	N/A
3	F942	PK/VT	0.50	FUSED IGNITION SWITCH OUTPUT (RUN-START)	N/A
