Module-EPS C1 (Standard) Connector End View (D2777A)

Harness-Family: HDLP_Dash

Color: BROWN

Gender: FEMALE

Part Number: 7287-1405-80

Part Description: Not Available

Connector No: D2777A

Option: Standard

Repair Kit Part Number: 68585982AA

Cavity Count: 2

Fig 1: Module-EPS C1 Connector End View (Standard)

Courtesy of CHRYSLER

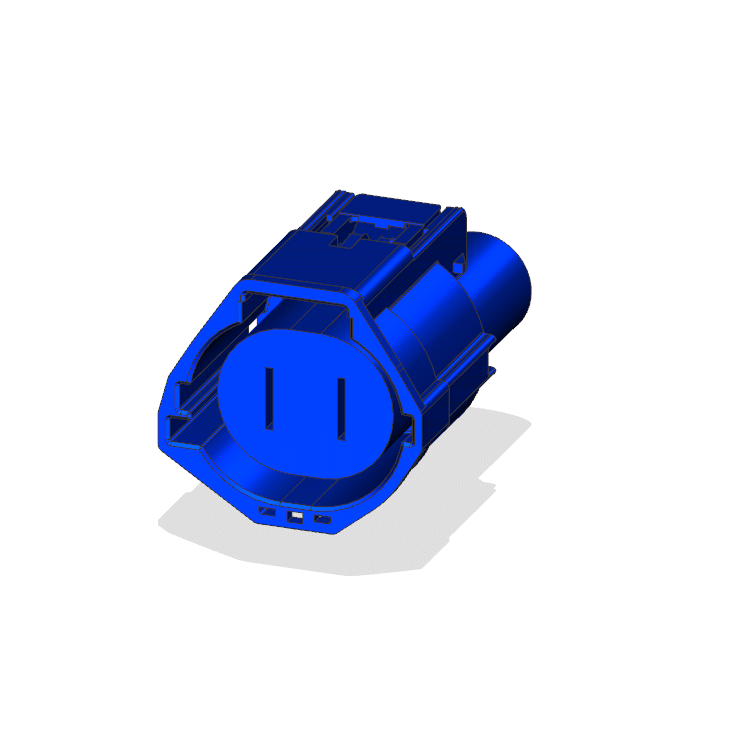

Fig 2: Module-EPS C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-EPS C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

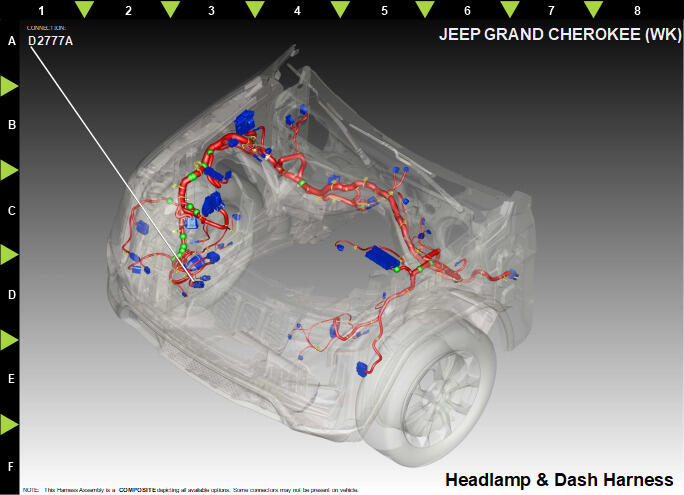

Fig 4: Module-EPS C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A951	RD	6.0	FUSED B(+)	N/A
2	Z907	BK	6.0	GROUND	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
