Module-Door-Driver C2 (Standard) Connector End View (D3818B)

Harness-Family: Outside_Mirror_Left

Color: BLACK

Gender: FEMALE

Part Number: 1-929171-1

Part Description: Not Available

Connector No: D3818B

Option: Standard

Repair Kit Part Number: 68156140AA

Cavity Count: 10

Fig 1: Module-Door-Driver C2 Connector End View (Standard)

Courtesy of CHRYSLER

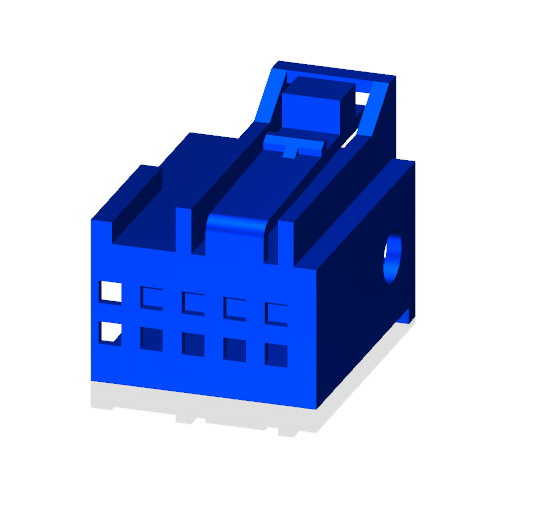

Fig 2: Module-Door-Driver C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Door-Driver C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

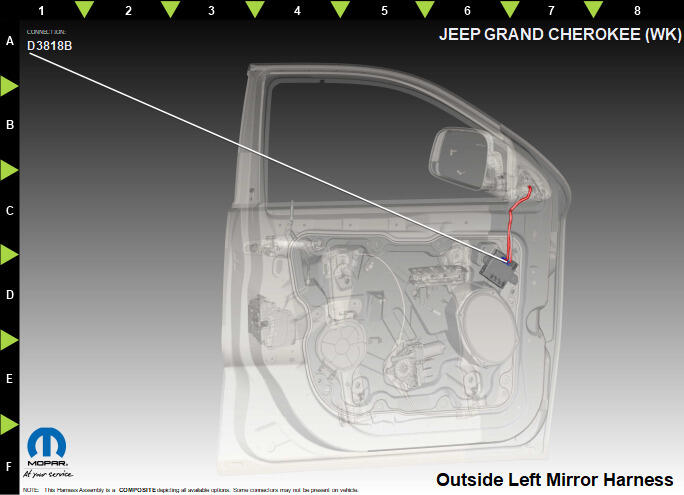

Fig 4: Module-Door-Driver C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P694	GN	0.35	PWR FOLD MIRROR FOLD DRIV	N/A
2	P691	GY	0.35	PWR FOLD MIRROR UNFOLD DRIV	N/A
3	C160	BK	0.35	DRIVER MIRROR HEATER RETURN	N/A
4	C16	BK	0.35	DRIVER MIRROR HEATER DRIVER	N/A
6	P71	RD	0.35	DRIVER MIRROR VERTICAL DRIVER	N/A
7	P73	BU	0.35	DRIVER MIRROR COMMON DRIVER	N/A
8	P75	GN	0.35	DRIVER MIRROR HORIZONTAL DRIVER	N/A
9	P501	DB	0.35	DRIVER MIRROR TURN SIGNAL DRIVER	N/A
10	P593	GY	0.35	DRIVER MIRROR TURN SIGNAL LAMP RETURN	N/A
