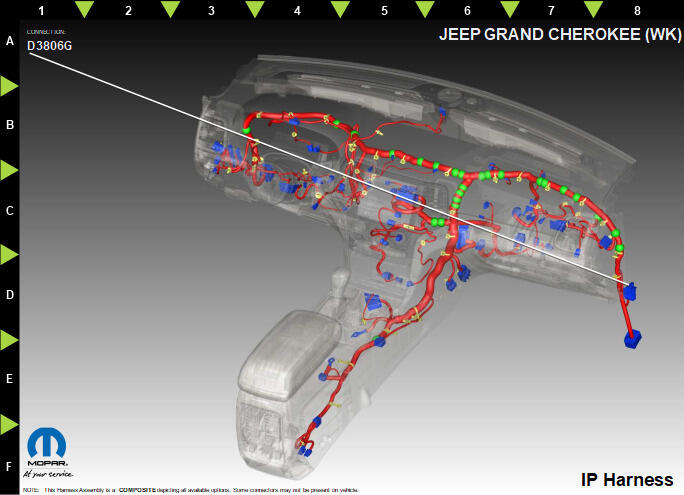

Module-Body Control C7/G (Standard) Connector End View (D3806G)

Harness-Family: IP

Color: BLUE

Gender: FEMALE

Part Number: 13687849_13850159

Part Description: Not Available

Connector No: D3806G

Option: Standard

Repair Kit Part Number: 68440525AB

Cavity Count: 24

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	D145	WH/GN	0.35	CAN IHS (+)	N/A
5	D146	WH	0.35	CAN IHS (-)	N/A
6	D402	OG/VT	0.35	LIN BUS CBC 2	N/A
7	D401	OG	0.35	LIN BUS 1	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	M27	YE/BU	0.50	READING LAMPS DRIVER	N/A
14	M11	YE/VT	0.50	COURTESY LAMPS DRIVER	N/A
15	G38	GY	0.35	UGDO ENABLE CONTROL CIRCUIT	N/A
16	N0	NA	0	NO CONNECT	N/A
17	L900	WH/YE	0.35	HEADLAMP SWITCH MUX RETURN	N/A
18	G77	VT/GY	0.35	LEFT REAR DOOR AJAR SWITCH SENSE	N/A
19	E2	OG/BN	0.35	DIMMING SIG SELECT	N/A
20	L307	WH/BN	0.35	HEADLAMP SWITCH MUX	N/A
21	L91	DB	0.13	HAZARD SWITCH SENSE	N/A
22	G84	GY	0.13	VTA WARNING INDICATOR	N/A
23	N0	NA	0	NO CONNECT	N/A
24	M5	WH/GN	0.50	FOOTWELL LAMP FEED FT LT	N/A
