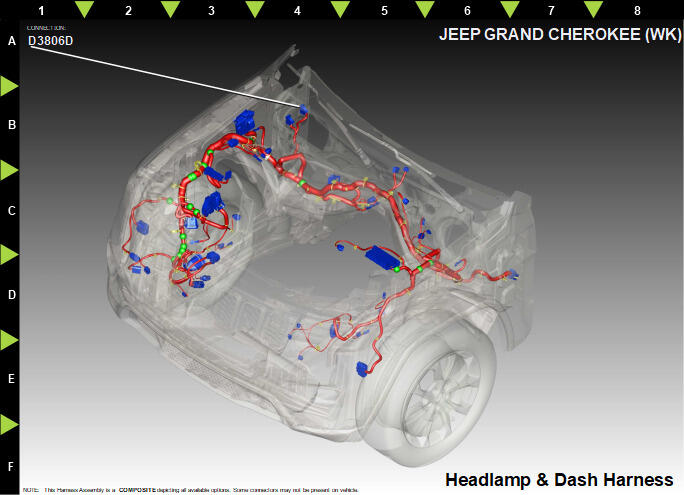

Module-Body Control C4/D (Standard) Connector End View (D3806D)

Harness-Family: HDLP_Dash

Color: NATURAL

Gender: FEMALE

Part Number: 13850156_13850159

Part Description: Not Available

Connector No: D3806D

Option: Standard

Repair Kit Part Number: 68500735AA

Cavity Count: 24

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L33	WH/GN	0.50	LEFT HIGH BEAM DRIVER	N/A
2	L44	WH/BG	0.75	RIGHT LOW BEAM DRIVER	N/A
3	L78	WH/OG	0.50	RIGHT FRONT PARK LAMP DRIVER	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	W24	BN/OG	0.50	RELAY CONTROL	N/A
7	K360	GY/BN	0.50	PTC 1 RELAY CONTROL	N/A
8	N0	NA	0	NO CONNECT	N/A
9	K361	WH/BN	0.50	PTC 2 RELAY CONTROL	N/A
10	K363	OG/BN	0.50	PTC 3 RELAY CONTROL	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	L90	WH/OG	0.75	RIGHT FRONT FOG LAMP CONTROL	N/A
14	L61	WH/GN	0.50	LEFT FRONT TURN LAMP DRIVER	N/A
15	L58	WH/YE	0.50	LEFT DRL LAMP DRIVER	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	B15	DG/WH	0.50	BRAKE SIGNAL 1	N/A
19	Z420	BK/OG	0.50	GROUND	N/A
20	N0	NA	0	NO CONNECT	N/A
21	B20	DG/OG	0.50	BRAKE FLUID LEVEL SIGNAL	N/A
22	G31	VT/GN	0.50	AAT SIGNAL	N/A
23	G931	VT/BN	0.50	SENSOR GROUND	N/A
24	T824	YE/DB	0.50	TRS PARK SIGNAL	N/A
