Module-Body Control C3/C (Standard) Connector End View (D3806C)

Harness-Family: Body

Color: NATURAL

Gender: FEMALE

Part Number: 7287-3831

Part Description: Not Available

Connector No: D3806C

Option: Standard

Repair Kit Part Number: 68498841AA

Cavity Count: 4

Fig 1: Module-Body Control C3/C Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Body Control C3/C Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Body Control C3/C Wire Insertion View (Standard)

Courtesy of CHRYSLER

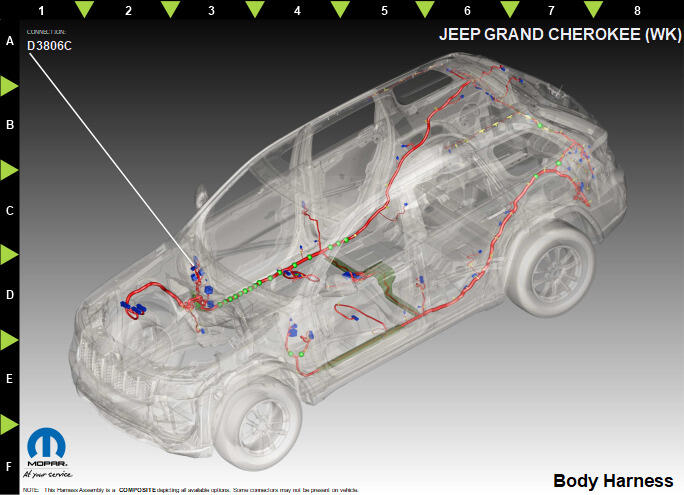

Fig 4: Module-Body Control C3/C Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A905	RD	2.0	FUSED B(+)	N/A
2	Z919	BK	4.0	GROUND	N/A
3	A906	RD/GY	4.0	FUSED B(+)	N/A
4	A903	RD	4.0	FUSED B(+)	N/A
