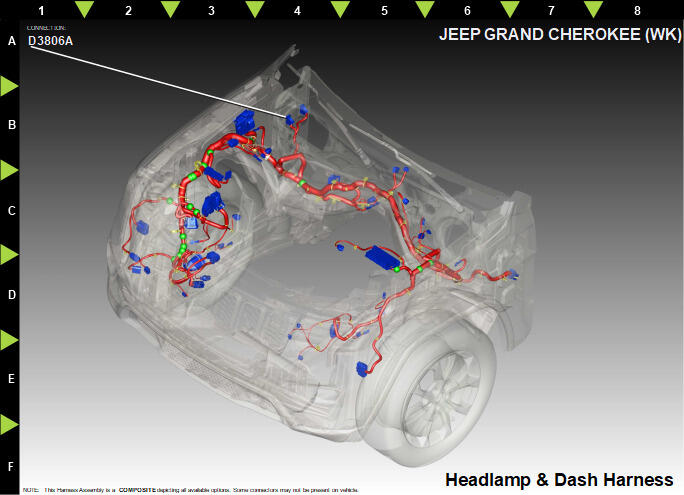

Module-Body Control C1/A (Standard) Connector End View (D3806A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 13850155_13850159

Part Description: Not Available

Connector No: D3806A

Option: Standard

Repair Kit Part Number: 68440528AA

Cavity Count: 24

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L89	WH/YE	0.75	LEFT FRONT FOG LAMP CONTROL	N/A
2	L34	WH/GY	0.50	RIGHT HIGH BEAM DRIVER	N/A
3	L43	WH/DB	0.75	LEFT LOW BEAM DRIVER	N/A
4	L77	WH/BN	0.75	LEFT FRONT PARK LAMP DRIVER	N/A
5	N0	NA	0	NO CONNECT	N/A
6	W7	BN/GY	0.50	WIPER PARK SWITCH SENSE	N/A
7	N0	NA	0	NO CONNECT	N/A
8	W1	BN/BG	0.50	WASHER FLUID LEVEL SWITCH SENSE	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	G70	VT/BU	0.50	HOOD AJAR SWITCH SENSE	N/A
12	W8	BN/BU	0.50	WIPER ON/OFF RELAY CONTROL	N/A
13	L60	WH/BG	0.50	RIGHT FRONT TURN LAMP DRIVER	N/A
14	W20	BN/YE	0.75	REAR WASHER PUMP MOTOR CONTROL	N/A
15	W10	BN	0.75	FRONT WASHER PUMP MOTOR CONTROL	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	K617	BN	0.50	RUN/START RELAY CONTROL	N/A
19	K90	BU/BG	0.50	STOP/START RELAY CONTROL	N/A
20	W2	BN/GN	0.50	WIPER HIGH/LOW RELAY CONTROL	N/A
21	N0	NA	0	NO CONNECT	N/A
22	L59	WH/DB	0.50	RIGHT DRL LAMP DRIVER	N/A
23	X4	DG/WH	0.50	HORN RELAY CONTROL	N/A
24	F1	PK/WH	0.50	IGNITION OFF/RUN/START CONTROL OUTPUT	N/A
