Switch-Memory Set (Standard) Connector End View (D2261A)

Harness-Family: Door_Driver_2

Color: BLUE

Gender: FEMALE

Part Number: 7129-1963-90

Part Description: Not Available

Connector No: D2261A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Switch-Memory Set Connector End View (Standard)

Courtesy of CHRYSLER

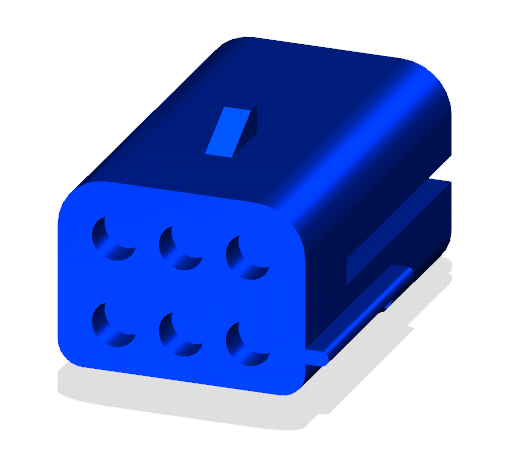

Fig 2: Switch-Memory Set Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Memory Set Wire Insertion View (Standard)

Courtesy of CHRYSLER

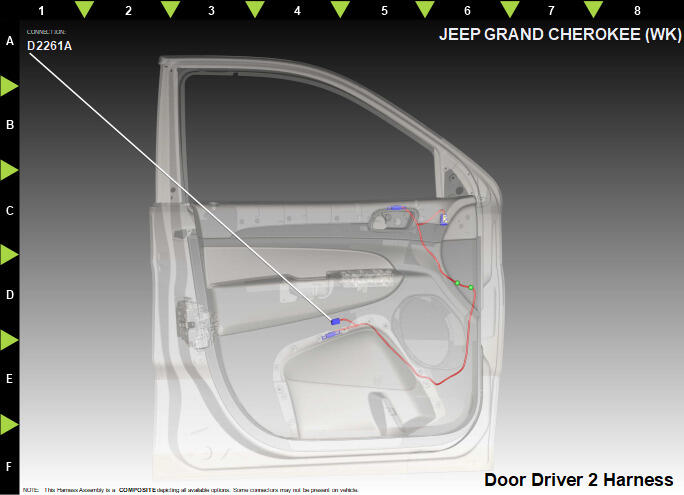

Fig 4: Switch-Memory Set Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA		NO CONNECT	N/A
2	N0	NA		NO CONNECT	N/A
3	N0	NA		NO CONNECT	N/A
4	N0	NA		NO CONNECT	N/A
5	G200	DB	0.50	MEMORY SELECT SWITCH MUX	N/A
6	G920	BN	0.50	MEMORY SELECT SWITCH RETURN	N/A
