Relay-Radiator Fan-Low (Standard) Connector End View (R0813)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Relay_Mini

Part Description: Not Available

Connector No: R0813

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 5

Fig 1: Relay-Radiator Fan-Low Connector End View (Standard)
GCWD1006348Courtesy of CHRYSLER

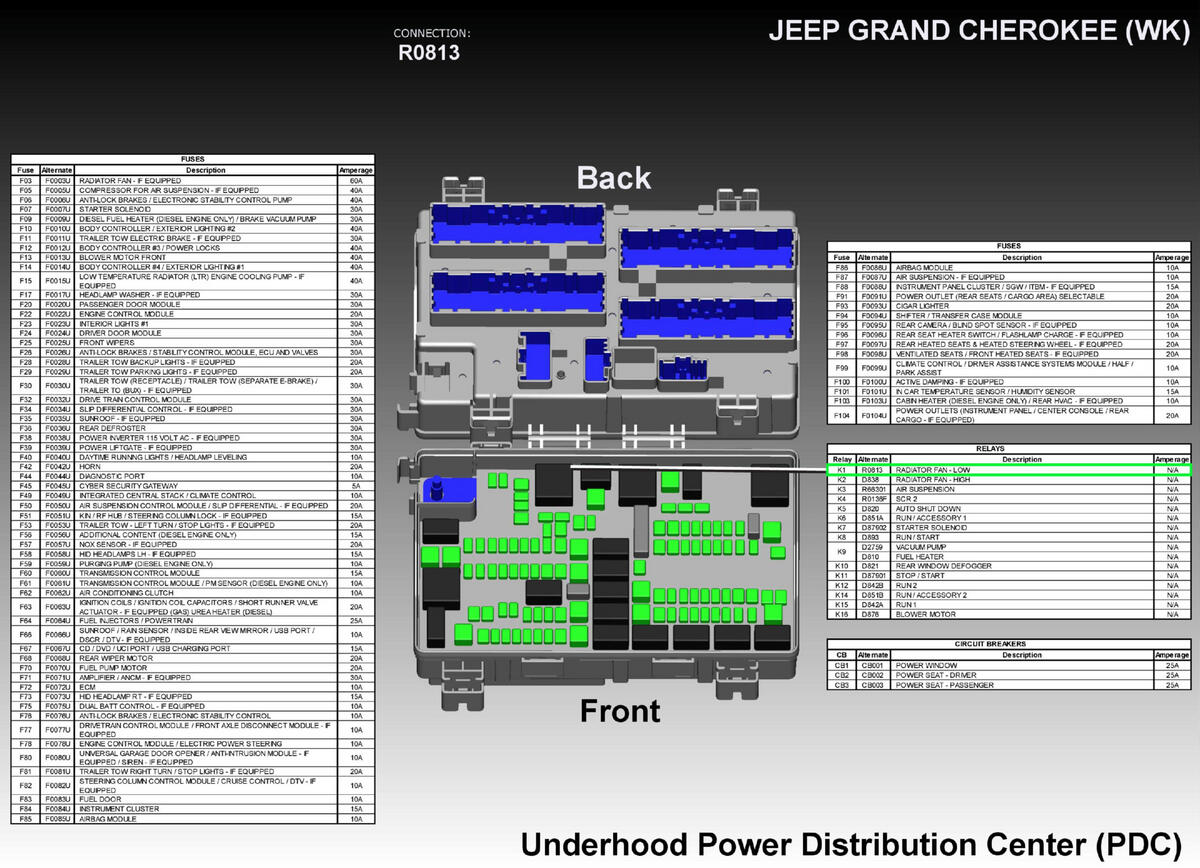

Fig 2: Relay-Radiator Fan-Low Component Location View (Standard)
GCWD1316434Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
30 A0 INTERNAL NA B(+) N/A
85 N201 INTERNAL NA LOW SPEED RAD FAN CONTROL N/A
86 F944 INTERNAL NA RUN/START RELAY OUTPUT N/A
87 N42 INTERNAL NA RAD FAN LOW N/A
