Relay-PCR Control (On PCB) (Standard) Connector End View (D917)

Harness-Family: PDC_Underhood

Color: NA

Gender: FEMALE

Part Number: NON-SERVICEABLE-PCB

Part Description: Not Available

Connector No: D917

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: Relay-PCR Control (on PCB) Connector End View (Standard)

Courtesy of CHRYSLER

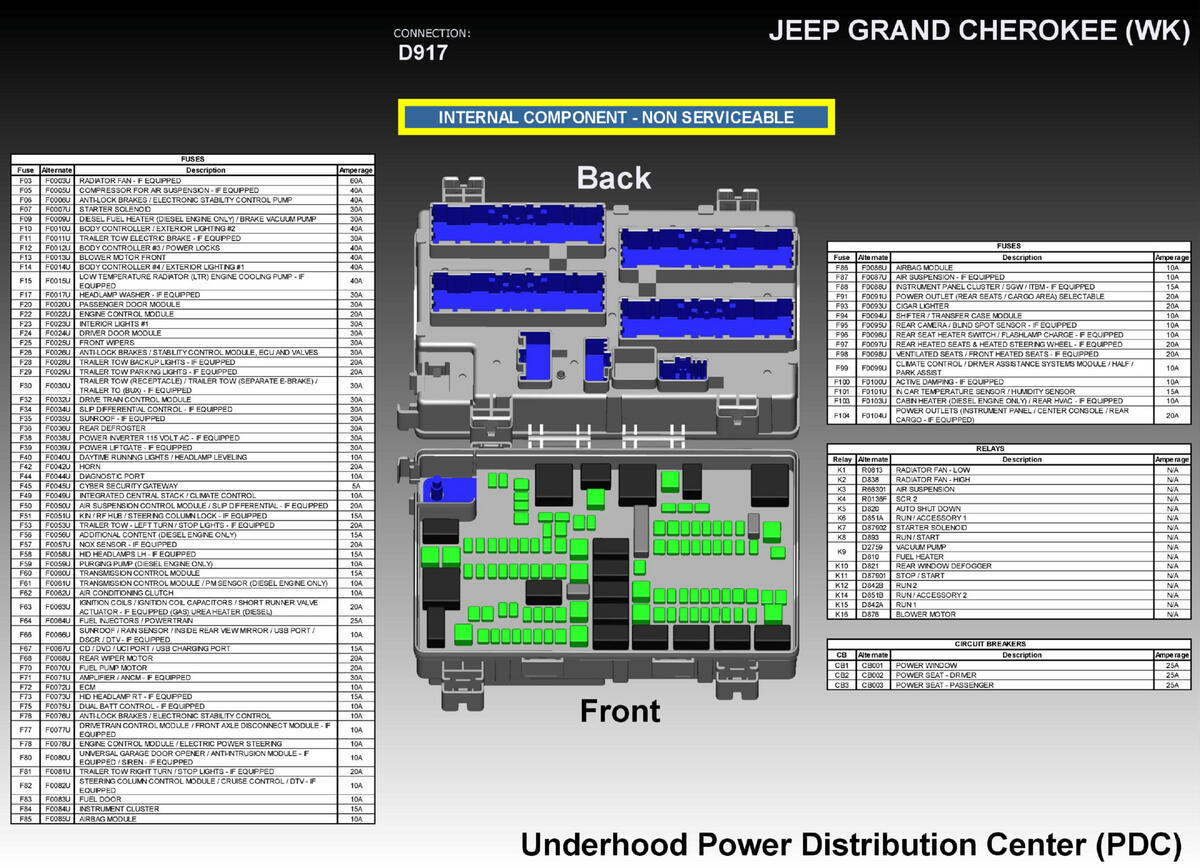

Fig 2: Relay-PCR Control (on PCB) Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
30	F944	INTERNAL	NA	RUN/START RELAY OUTPUT	N/A
85	T762	INTERNAL	NA	PCR RELAY CONTROL	N/A
86	T750	INTERNAL	NA	STARTER RELAY OUTPUT	N/A
87	T760	INTERNAL	NA	PCR CONTROL RELAY OUTPUT	N/A
