Radiator, Low Temperature: Installation

Courtesy of CHRYSLER GROUP, LLC

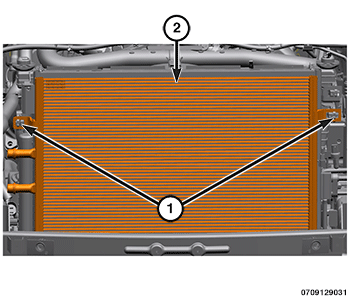

Install the Low Temperature Radiator (LTR) (2), aligning it to the engine radiator, and engage the retaining clips (1).

Courtesy of CHRYSLER GROUP, LLC

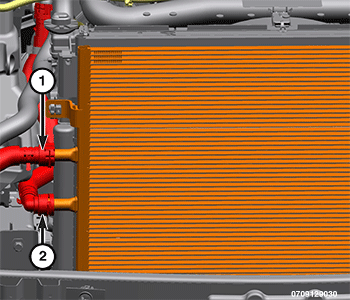

Install the outlet hose (2) and the inlet hose (1) onto the LTR.
Install the hood latch. Refer to LATCH, HOOD, INSTALLATION .
Install the fascia. Refer to FASCIA, FRONT, INSTALLATION .
Fill the cooling system with coolant. Refer to COOLANT SYSTEM AIR EVACUATION .
Connect the negative battery cable.
Operate the engine until it reaches normal operating temperature. Check the cooling system for the correct fluid levels.
