Removal And Installation: 3.6L

REMOVAL

CAUTION:

Anytime the Steering Column Control Module (SCCM) is mounted on the steering column the steering shaft must be kept from turning or else SCCM damage will occur. Some vehicles do not have an internal lock mechanisms, so the steering column shaft must be preventing from rotating through use of a suitable tool.

Secure the steering wheel to prevent it from turning.
Remove the air intake resonator. Refer to RESONATOR, AIR CLEANER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

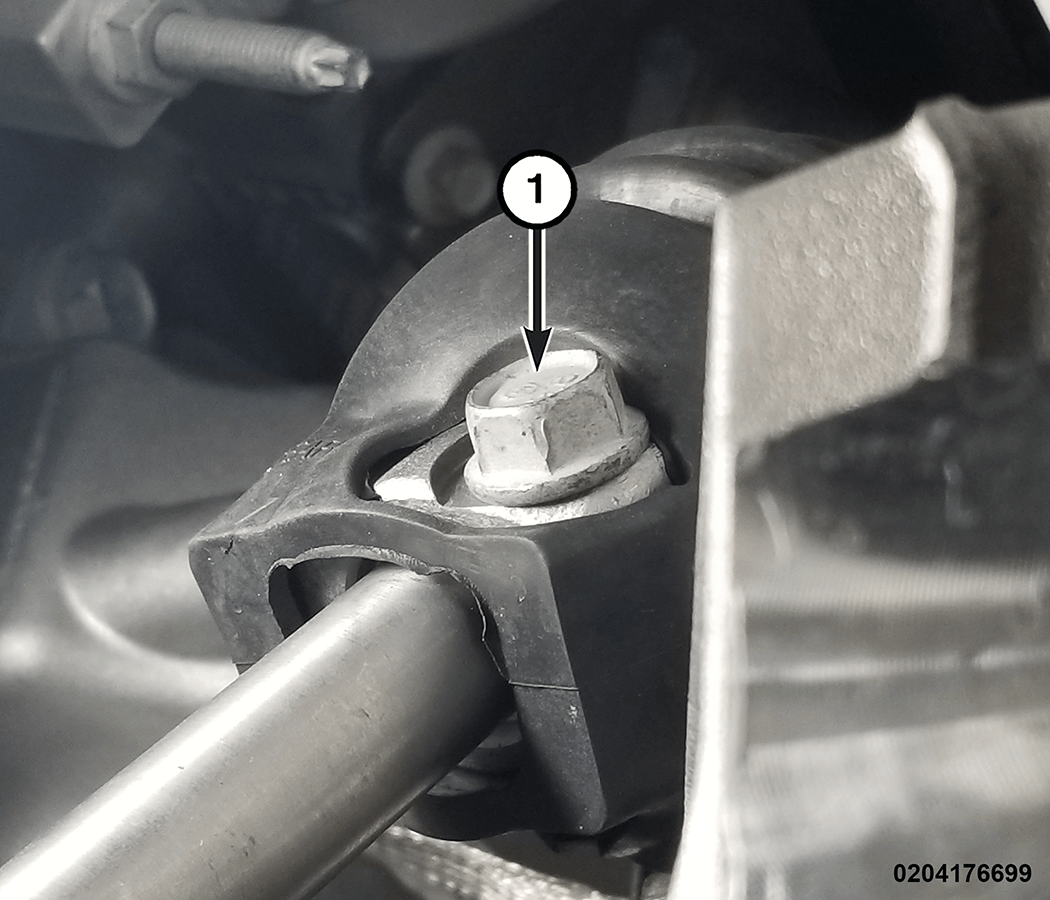

1 - Upper Steering Column Shaft Coupling Pinch Bolt
Remove and DISCARD the upper steering column shaft coupling pinch bolt and disengage the intermediate shaft from the steering column shaft coupling.

Courtesy of CHRYSLER GROUP, LLC

1 - Intermediate Shaft Pinch Bolt
Remove and DISCARD the intermediate shaft pinch bolt.
Remove the intermediate shaft.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

During installation torque the following fasteners to specification:

Steering Column Shaft Coupling Pinch Bolts	45 N. m (33 Ft. Lbs.)	Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications.
Intermediate Shaft Pinch Bolt	45 N. m (33 Ft. Lbs.)	Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications.
