Power Outlet-Rear (Standard) Connector End View (D7425A)

Harness-Family: PICKUP_BED_RIGHT

Color: BLACK

Gender: FEMALE

Part Number: 34900-4120

Part Description: Not Available

Connector No: D7425A

Option: Standard

Repair Kit Part Number: 68148103AA

Cavity Count: 4

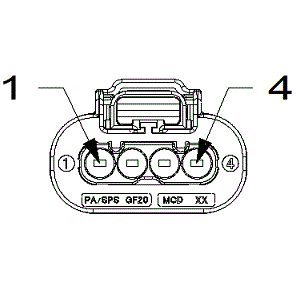

Fig 1: Power Outlet-Rear Connector End View (Standard)

Courtesy of CHRYSLER

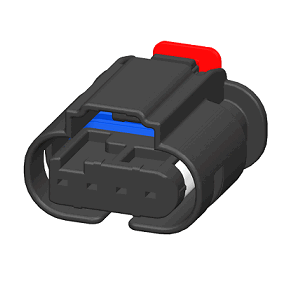

Fig 2: Power Outlet-Rear Isometric View (Standard)

Courtesy of CHRYSLER

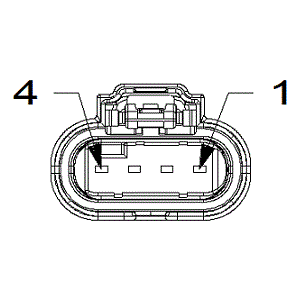

Fig 3: Power Outlet-Rear Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Power Outlet-Rear Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P810	BG	0.80	AC VOLTAGE LINE 3	N/A
2	P812	BG/BU	0.35	INVERTER ENABLE 2	N/A
3	P827	GN/DB	0.35	INVERTER SWITCH SIGNAL	220VAC INVERTER
3	P807	GN/BU	0.35	INVERTER SWITCH SIGNAL	110VAC INVERTER
4	P811	BG/OG	0.80	AC VOLTAGE LINE 4	N/A
