Module-Powertrain Control C2 (Standard) Connector End View (D3837B)

Harness-Family: Engine_Diesel1

Color: BLACK

Gender: FEMALE

Part Number: 1/11902/07

Part Description: Not Available

Connector No: D3837B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

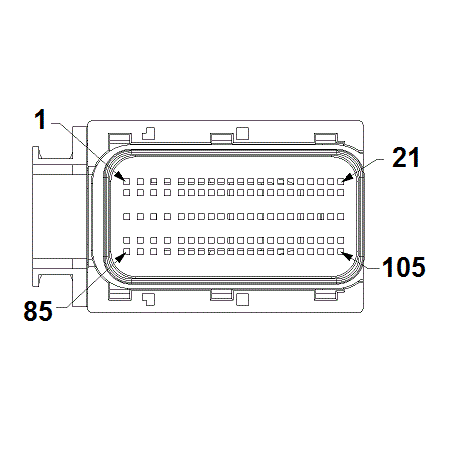

Fig 1: Module-Powertrain Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

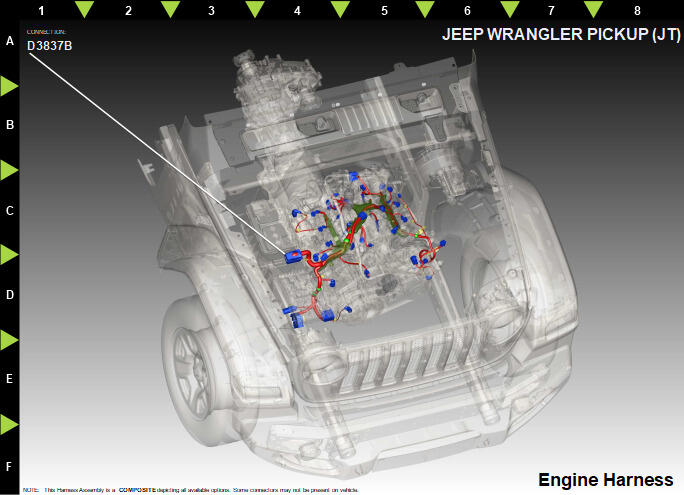

Fig 2: Module-Powertrain Control C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K677	VT	1.0	MOTOR (+)	N/A
2	K678	BK/VT	1.0	MOTOR (-)	N/A
3	K682	BN	1.0	MOTOR (+)	N/A
5	K481	GY/RD	0.75	DEF PURGE PUMP CONTROL	N/A
6	K366	GY	0.75	FUEL QUANTITY SOLENOID 12 VOLT SUPPLY	N/A
7	K365	BN/VT	0.75	FUEL QUANTITY CONTROL	N/A
8	K314	WH/VT	0.75	MOTOR (+)	N/A
9	K315	VT/OG	0.75	MOTOR (-)	N/A
12	K385	DB/GN	0.50	SENSOR GROUND	N/A
13	K384	OG	0.50	EGT SIGNAL	N/A
14	F854	VT/RD	0.50	5 VOLT SUPPLY	N/A
15	K371	GY	0.50	5V SUPPLY	N/A
16	K313	BN/VT	0.75	5-VOLT SUPPLY	N/A
17	F859	BN/WH	0.75	5-VOLT SUPPLY	N/A
18	K110	WH/GN	0.50	OIL PRESSURE SENSOR 5 VOLT SUPPLY	N/A
19	K853	BK/RD	0.50	CRANK POS 5 VOLT SUPPLY	N/A
20	K24	VT/WH	0.50	CKP SIGNAL	N/A
21	K925	GY	0.50	CKP GROUND	N/A
22	K14	BK/GN	1.50	INJECTOR 4 CONTROL	N/A
23	K58	WH	1.50	INJECTOR 6 CONTROL	N/A
24	K38	YE/BK	1.50	INJECTOR 5 CONTROL	N/A
25	K684	BN/WH	1.0	MOTOR (-)	N/A
26	K646	GY/GN	0.75	FUEL PRESSURE REGULATOR CONTROL	N/A
27	K369	BN/RD	0.75	FUEL PRESSURE 12 VOLT SUPPLY	N/A
28	K945	GY	0.75	ACTUATOR SWIRL END POSITION RTN	N/A
29	K351	GN/WH	0.75	5V ACTUATOR SWIRL END POSITION	N/A
31	K64	BK/OG	0.50	SENSOR GROUND	N/A
32	K69	DB/GN	0.50	TEMP SIGNAL	N/A
33	K50	BK/OG	0.50	SENSOR GROUND	N/A
35	K666	BK	0.50	SENSOR RETURN	N/A
36	K932	WH/RD	0.50	SENSOR SIGNAL	N/A
37	K844	RD/GN	0.50	CMP 5 VOLT SUPPLY	N/A
38	K668	DB/WH	0.50	5 VOLT SUPPLY	N/A
39	N121	WH/RD	0.50	SWIRL VALVE POSITION SENSOR 1 5-VOLT SUPPLY	N/A
40	K834	YE/RD	0.75	5-VOLT SUPPLY	N/A
42	K350	RD/YE	0.50	5 VOLT SUPPLY	N/A
43	K614	BK/YE	1.50	INJECTOR 4 LOW SIDE CONTROL	N/A
44	K658	BK	1.50	INJECTOR 6 LOW SIDE CONTROL	N/A
45	K638	VT	1.50	INJECTOR 5 LOW SIDE CONTROL	N/A
48	K420	YE/GN	0.50	DEF LEVEL/TEMP RETURN	N/A
49	K414	GN/BK	0.50	DEF LEVEL/TEMP SIGNAL	N/A
51	K944	OG	0.50	CMP GROUND	N/A
52	K44	GN/WH	0.50	CMP SENSOR SIGNAL 1/1	N/A
54	K373	WH/GN	0.50	EXHAUST GAS PRESSURE SENSOR SIGNAL	N/A
55	K915	BK/DB	0.50	SENSOR RETURN	N/A
56	K935	WH/VT	0.50	SENSOR SIGNAL	N/A
57	K662	BK/DB	0.50	SENSOR RETURN	N/A
58	K685	BN/GN	0.75	SENSOR SIGNAL	N/A
59	K49	DB	0.50	TEMP SIGNAL	N/A
60	G224	OG/WH	0.50	EOT SIGNAL	N/A
61	K665	WH/YE	0.50	SENSOR SIGNAL	N/A
62	K181	WH/RD	0.50	FUEL PRESSURE SIGNAL	N/A
63	K359	GY/BK	0.50	SENSOR GROUND	N/A
64	K11	BN/BK	1.50	INJECTOR 1 CONTROL	N/A
65	K13	OG/GN	1.50	INJECTOR 3 CONTROL	N/A
66	K12	OG/WH	1.50	INJECTOR 2 CONTROL	N/A
67	K675	OG/BK	1.0	MOTOR (+)	N/A
69	N117	GY/GN	0.75	INTAKE SWIRL SERVO MOTOR CONTROL	N/A
71	K426	BN/WH	0.75	DEF INJECTOR NEGATIVE	N/A
73	K670	BN/GN	0.75	EGR BYPASS VALVE CONTROL	N/A
74	K900	VT/WH	0.50	SENSOR GROUND	N/A
75	K372	OG/WH	0.50	EGT SIGNAL	N/A
76	N122	BK	0.50	SWIRL VALVE POSITION SENSOR 1 RETURN	N/A
77	N119	WH/VT	0.50	SWIRL ACTUATOR RT SIG	N/A
78	K934	BK/RD	0.75	SENSOR RETURN	N/A
79	K683	VT/OG	0.75	SENSOR SIGNAL	N/A
80	G6	DB/RD	0.50	OIL PRESSURE SIGNAL	N/A
81	G924	BK	0.50	EOT SENSOR GROUND	N/A
85	K611	BN/WH	1.50	INJECTOR 1 LOW SIDE CONTROL	N/A
86	K613	BN	1.50	INJECTOR 3 LOW SIDE CONTROL	N/A
87	K612	OG/DB	1.50	INJECTOR 2 LOW SIDE CONTROL	N/A
88	K676	DB	1.0	MOTOR (-)	N/A
92	K482	BK/DB	0.75	DEF SUPPLY PUMP CONTROL	N/A
94	K428	BN/VT	0.75	DEF INJECTOR POSITIVE	N/A
95	K690	BK/RD	0.50	COMBO PRESS AND TEMP SNSR RTN	N/A
96	K37	RD/BK	0.50	BOOST PRESSURE SIGNAL	N/A
97	K922	BN/GN	0.75	SENSOR RETURN	N/A
98	K22	BN/RD	0.75	SENSOR SIGNAL	N/A
99	K200	YE/RD	0.50	SENSOR GROUND	N/A
100	K2	WH/DB	0.50	ECT SIGNAL	N/A
101	N118	YE/GN	0.50	SWIRL VALVE POSITION SENSOR 1 SIGNAL	N/A
