Lamp-License-Right (Standard) Connector End View (D4546A)

Harness-Family: REAR BUMPER

Color: BLACK

Gender: FEMALE

Part Number: 872-857-571

Part Description: Not Available

Connector No: D4546A

Option: Standard

Repair Kit Part Number: 68137868AA

Cavity Count: 2

Fig 1: Lamp-License-Right Connector End View (Standard)
GCWD1016835Courtesy of CHRYSLER

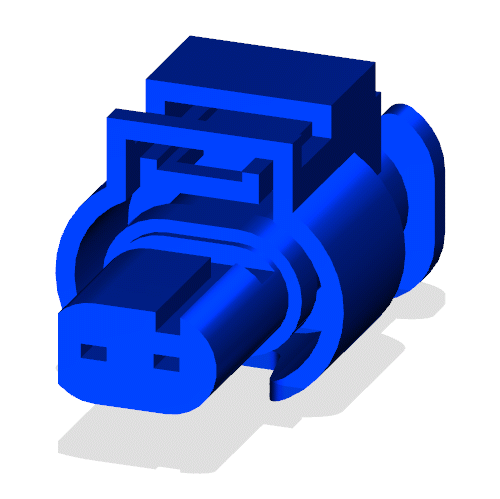

Fig 2: Lamp-License-Right Isometric View (Standard)
GCWD1088979Courtesy of CHRYSLER
Fig 3: Lamp-License-Right Wire Insertion View (Standard)
GCWD1006901Courtesy of CHRYSLER

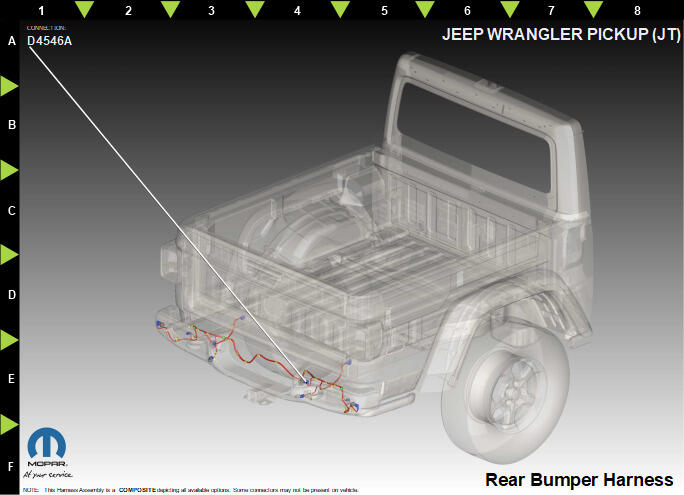

Fig 4: Lamp-License-Right Component Location View (Standard)
GCWD1318158Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 L3 WH/DB 0.50 LICENSE PLATE LAMP DRIVER N/A
2 Z925 BK 0.50 GROUND N/A
