Lamp-Assembly-Right Front C2 (Standard) Connector End View (D6606B)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 7283-8852-30

Part Description: Not Available

Connector No: D6606B

Option: Standard

Repair Kit Part Number: 68528156AA

Cavity Count: 3

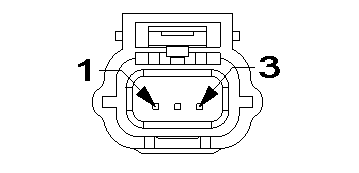

Fig 1: Lamp-Assembly-Right Front C2 Connector End View (Standard)

Courtesy of CHRYSLER

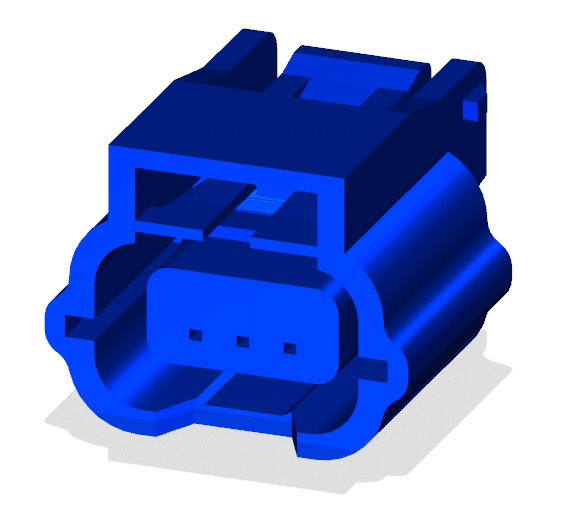

Fig 2: Lamp-Assembly-Right Front C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Lamp-Assembly-Right Front C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

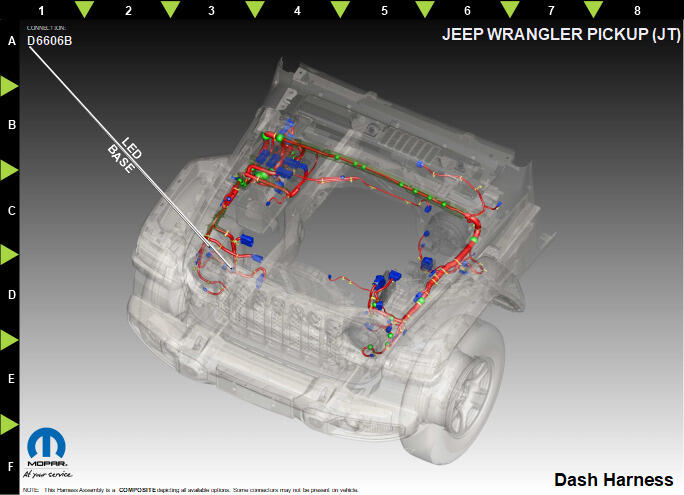

Fig 4: Lamp-Assembly-Right Front C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F927	PK/YE	0.35	FUSED IGNITION	N/A
2	L132	GN/WH	0.35	RIGHT HEADLAMP LEVEL SENSOR SIGNAL	PREMIUM
2	L133	WH/YE	0.35	HEADLAMP LEVEL MOTOR SIGNAL	BASE
3	Z904	BK	0.35	GROUND	N/A
