Heater-Steering Wheel (Standard) Connector End View (D2708A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: MALE

Part Number: 1563190-1

Part Description: Not Available

Connector No: D2708A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Heater-Steering Wheel Connector End View (Standard)

Courtesy of CHRYSLER

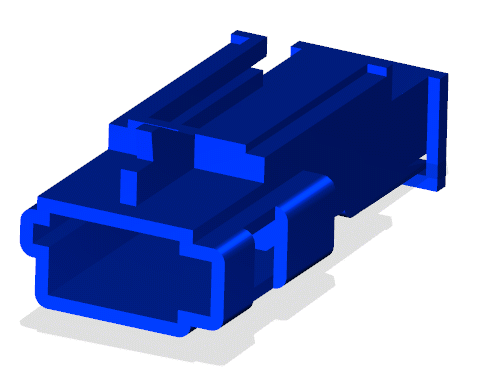

Fig 2: Heater-Steering Wheel Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Heater-Steering Wheel Wire Insertion View (Standard)

Courtesy of CHRYSLER

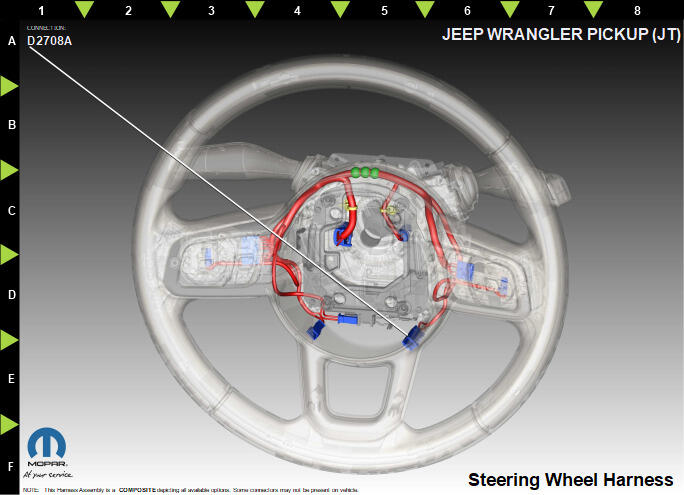

Fig 4: Heater-Steering Wheel Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	C91	GN	0.35	HEATED STEERING WHEEL FEED	N/A
2	C986	YE	0.35	HEATED STEERING WHEEL RETURN	N/A
