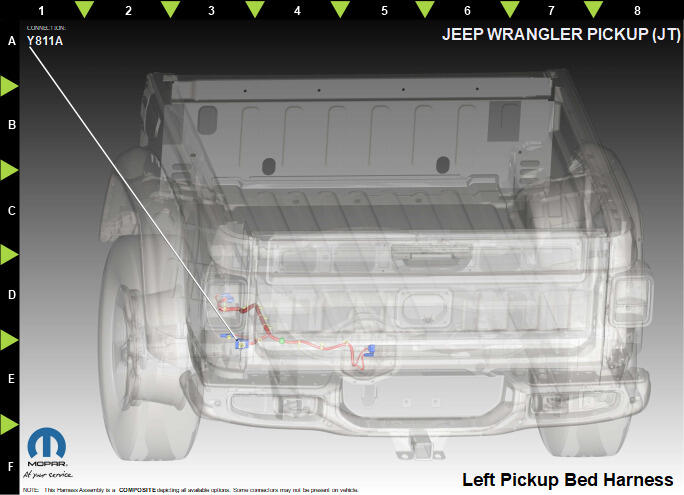

XY811A (Standard) Connector End View (Y811A)
Harness-Family: PICKUP_BED_LEFT
Color: BLACK
Gender: MALE
Part Number: 807-378-511
Part Description: Not Available
Connector No: Y811A
Option: Standard
Repair Kit Part Number: 68490388AA
Cavity Count: 12
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | L52 | WH | 1.0 | LEFT STOP LAMP DRIVER | BUX |
| 1 | L9 | YE | 1.0 | LEFT STOP/TURN FEED | EXCEPT BUX |
| 2 | L145 | WH/OG | 1.0 | LEFT SIDE MARKER CONTROL | N/A |
| 3 | L63 | WH/DG | 1.0 | LEFT REAR TURN LAMP DRIVER | N/A |
| 4 | L71 | WH/GY | 1.0 | LEFT REAR PARK LAMP DRIVER | N/A |
| 5 | L15 | WH/BG | 1.0 | LEFT BACKUP LAMP DRIVER | N/A |
| 6 | Z925 | BK/GY | 0.75 | GROUND | N/A |
| 7 | Z925 | BK/GY | 0.75 | GROUND | N/A |
| 8 | L563 | WH/GY | 0.50 | LEFT REAR LIGHTING FAULT SENSE | N/A |
| 9 | F923 | PK/YE | 0.50 | RUN RELAY CONTROL | N/A |
| 10 | D215 | DB/WH | 0.50 | CAN IHS (+) | N/A |
| 11 | D216 | WH | 0.50 | CAN IHS (-) | N/A |
| 12 | P711 | GN | 0.50 | LEFT BLIND SPOT INDICATOR DRIVER | N/A |
