XY802A (Standard) Connector End View (X802A)

Harness-Family: PICKUP_BED_RIGHT

Color: BLACK

Gender: FEMALE

Part Number: 807-445-511

Part Description: Not Available

Connector No: X802A

Option: Standard

Repair Kit Part Number: 68490828AA

Cavity Count: 16

Fig 1: Xy802a Connector End View (Standard)

GCWD1013010

Courtesy of CHRYSLER

Fig 2: Xy802a Isometric View (Standard)

GCWD1011315

Courtesy of CHRYSLER

Fig 3: Xy802a Wire Insertion View (Standard)

GCWD1007717

Courtesy of CHRYSLER

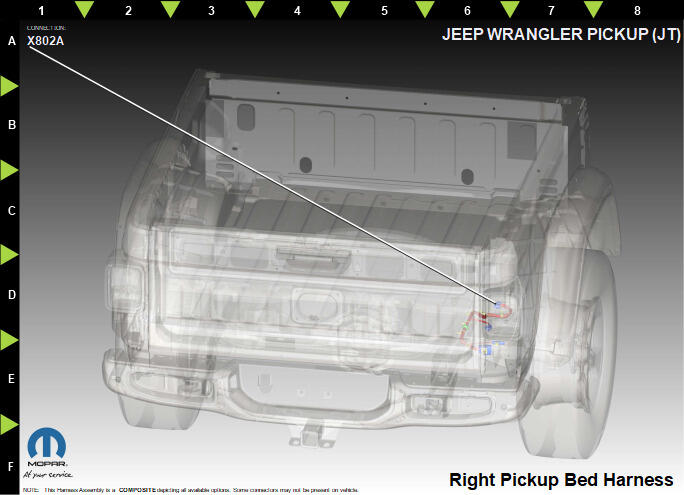

Fig 4: Xy802a Component Location View (Standard)

GCWD1318365

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L6	GN	1.0	RIGHT STOP/TURN FEED	EXCEPT EXPORT
1	L54	WH/GN	1.0	RIGHT STOP LAMP DRIVER	EXPORT
2	L144	BG/OG	1.0	RIGHT SIDE MARKER CONTROL	N/A
3	L562	WH/BG	0.50	RIGHT REAR LIGHTING FAULT SENSE	N/A
4	F923	PK/YE	0.50	RUN RELAY CONTROL	N/A
5	D217	DG/WH	0.50	CAN IHS (+)	N/A
6	D218	WH	0.50	CAN IHS (-)	N/A
7	L62	WH/YE	1.0	RIGHT REAR TURN LAMP DRIVER	N/A
8	L16	WH/VT	1.0	RIGHT BACKUP LAMP DRIVER	N/A
9	L72	WH/OG	1.0	RIGHT REAR PARK LAMP DRIVER	N/A
10	L19	BG/WH	0.50	CARGO LAMP DRIVER	N/A
11	P810	BG	0.80	AC VOLTAGE LINE 3	N/A
12	P827	GN/DB	0.35	INVERTER SWITCH SIGNAL	220VAC INVERTER
12	P807	GN/BU	0.35	INVERTER SWITCH SIGNAL	110VAC INVERTER
13	P811	BG/OG	0.80	AC VOLTAGE LINE 4	N/A
14	P812	BG/BU	0.35	INVERTER ENABLE 2	N/A
15	P712	GN/WH	0.50	RIGHT BLIND SPOT INDICATOR DRIVER	N/A
16	Z926	BK	1.0	GROUND	N/A
