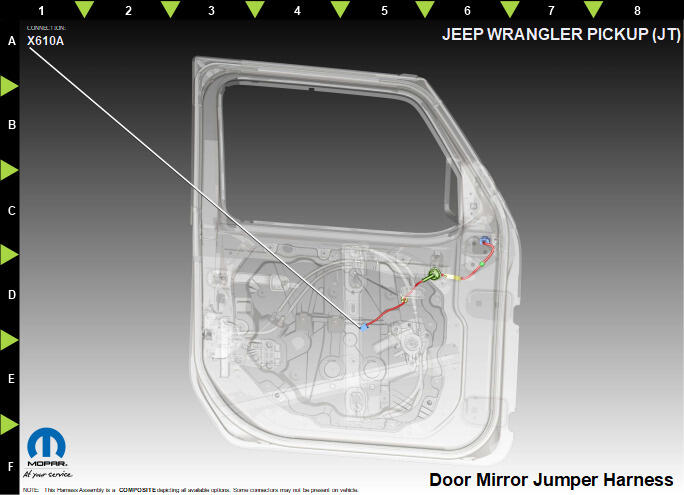

XY610A (Standard) Connector End View (X610A)
Harness-Family: Mirror_Jumper_Driver
Color: LIGHT GRAY
Gender: FEMALE
Part Number: 30700-1100
Part Description: Not Available
Connector No: X610A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 10
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | C110 | DB/BU | 0.50 | MIRROR HEATER DRIVER | N/A |
| 2 | L160 | WH/BG | 0.35 | TURN SIGNAL CONTROL | RHD |
| 2 | L161 | WH/GN | 0.35 | TURN SIGNAL CONTROL | LHD |
| 3 | P71 | BG/DG | 0.35 | DRIVER MIRROR VERTICAL DRIVER | N/A |
| 4 | P712 | GN/WH | 0.35 | RIGHT BLIND SPOT INDICATOR DRIVER | RHD |
| 4 | P711 | GN | 0.35 | LEFT BLIND SPOT INDICATOR DRIVER | LHD |
| 5 | N0 | NA | 0 | NO CONNECT | N/A |
| 6 | P75 | BG/GN | 0.35 | DRIVER MIRROR HORIZONTAL DRIVER | N/A |
| 7 | P76 | BG/BU | 0.50 | MIRROR COMMON DRIVER | N/A |
| 8 | N0 | NA | 0 | NO CONNECT | N/A |
| 9 | N0 | NA | 0 | NO CONNECT | N/A |
| 10 | Z911 | BK | 0.50 | GROUND | N/A |
