XY437A (Standard) Connector End View (Y437A)

Harness-Family: Seat_Rear_Left

Color: GRAY

Gender: MALE

Part Number: 34899-2082

Part Description: Not Available

Connector No: Y437A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Xy437a Connector End View (Standard)

GCWD1288788

Courtesy of CHRYSLER

Fig 2: Xy437a Isometric View (Standard)

GCWD1319027

Courtesy of CHRYSLER

Fig 3: Xy437a Wire Insertion View (Standard)

GCWD1318327

Courtesy of CHRYSLER

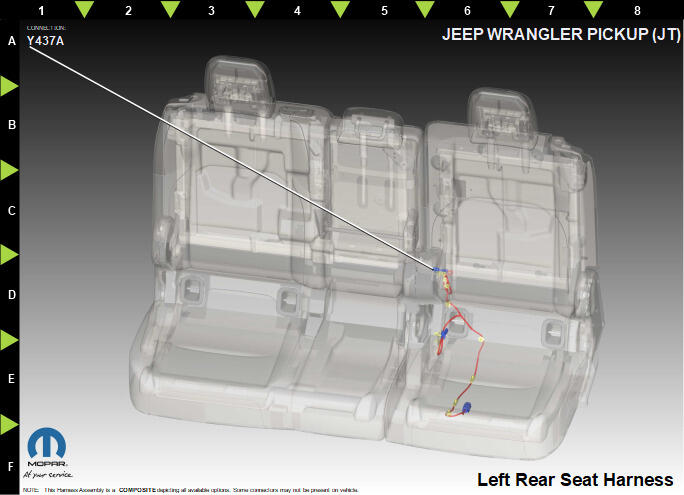

Fig 4: Xy437a Component Location View (Standard)

GCWD1318177

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R729	GN/BK	0.75	DRIVER SEAT DETECTION RETURN	N/A
2	R71	BU/VT	0.75	LEFT REAR SEAT BELT BUCKLE SWITCH SENSE	N/A
