XY437A (Standard) Connector End View (X437A)

Harness-Family: Seat_Rear_Right

Color: BLACK

Gender: FEMALE

Part Number: 34900-2122

Part Description: Not Available

Connector No: X437A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Xy437a Connector End View (Standard)
GCWD1318742Courtesy of CHRYSLER
Fig 2: Xy437a Isometric View (Standard)
GCWD1318664Courtesy of CHRYSLER
Fig 3: Xy437a Wire Insertion View (Standard)
GCWD1318720Courtesy of CHRYSLER

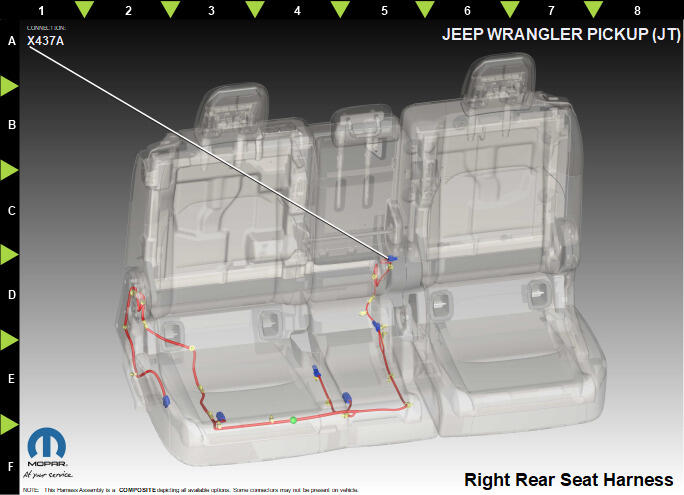

Fig 4: Xy437a Component Location View (Standard)
GCWD1318522Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R729 GN/BK 0.75 DRIVER SEAT DETECTION RETURN N/A
2 R71 BU/VT 0.75 LEFT REAR SEAT BELT BUCKLE SWITCH SENSE N/A
