XY436A (Standard) Connector End View (X436A)

Harness-Family: Seat_Rear_Right

Color: BLACK

Gender: FEMALE

Part Number: 34900-6119

Part Description: Not Available

Connector No: X436A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Xy436a Connector End View (Standard)
GCWD1308715Courtesy of CHRYSLER
Fig 2: Xy436a Isometric View (Standard)
GCWD1308798Courtesy of CHRYSLER
Fig 3: Xy436a Wire Insertion View (Standard)
GCWD1008803Courtesy of CHRYSLER

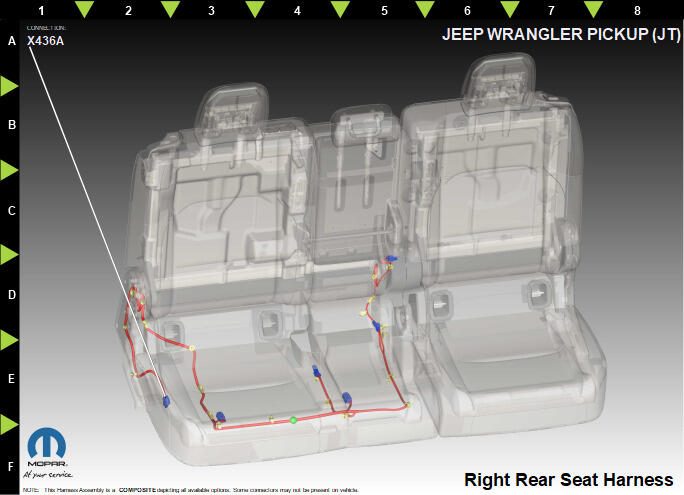

Fig 4: Xy436a Component Location View (Standard)
GCWD1318482Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R72 VT/BU 0.75 RIGHT REAR SEAT BELT BUCKLE SWITCH SENSE N/A
2 R730 BU/BK 0.75 PASSENGER SEAT DETECTION RETURN N/A
3 R27 BU/OG 0.75 2ND ROW SEAT BELT SWITCH SENSE N/A
4 R729 GN/BK 0.75 DRIVER SEAT DETECTION RETURN N/A
5 R71 BU/VT 0.75 LEFT REAR SEAT BELT BUCKLE SWITCH SENSE N/A
6 N0 NA 0 NO CONNECT N/A
