XY290A (Standard) Connector End View (X290A)

Harness-Family: Chassis_LT

Color: BLACK

Gender: FEMALE

Part Number: 807-479-501

Part Description: Not Available

Connector No: X290A

Option: Standard

Repair Kit Part Number: 68475543AA

Cavity Count: 12

Fig 1: Xy290a Connector End View (Standard)

GCWD1238035

Courtesy of CHRYSLER

Fig 2: Xy290a Isometric View (Standard)

GCWD1308598

Courtesy of CHRYSLER

Fig 3: Xy290a Wire Insertion View (Standard)

GCWD1009577

Courtesy of CHRYSLER

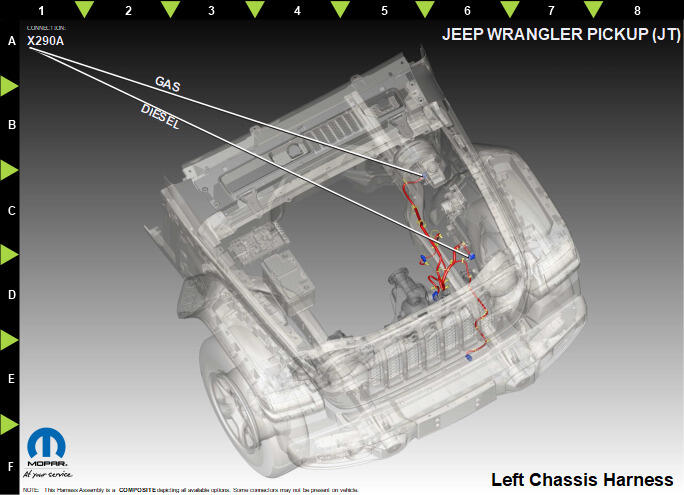

Fig 4: Xy290a Component Location View (Standard)

GCWD1318990

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F946	PK/GN	0.75	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	T523	YE/BG	0.75	LOCKER SENSOR RETURN	N/A
4	T522	YE/BU	0.75	FRONT LOCKER SWITCH SENSE	N/A
5	B8	DG/BG	0.35	LEFT FRONT WHEEL SPEED SENSOR (-)	N/A
6	B9	DG/GN	0.35	LEFT FRONT WHEEL SPEED SENSOR (+)	N/A
7	N0	NA	0	NO CONNECT	N/A
8	L966	WH/BK	0.35	HEADLAMP LEVELING SENSOR FRONT RETURN	N/A
9	F861	WH/PK	0.35	HEADLAMP LEVELING SNSR 5V SUPPLY	N/A
10	L960	WH/DG	0.35	HEADLAMP LEVELING SENSOR FRONT SIGNAL	N/A
11	T524	YE/GN	0.75	FRONT LOCKER RETURN	N/A
12	N0	NA	0	NO CONNECT	N/A
