XY240A (Standard) Connector End View (Y240A)

Harness-Family: Dash

Color: BLACK

Gender: MALE

Part Number: 10093459

Part Description: Not Available

Connector No: Y240A

Option: Standard

Repair Kit Part Number: 68508827AA

Cavity Count: 4

Fig 1: Xy240a Connector End View (Standard)

GCWD1007542

Courtesy of CHRYSLER

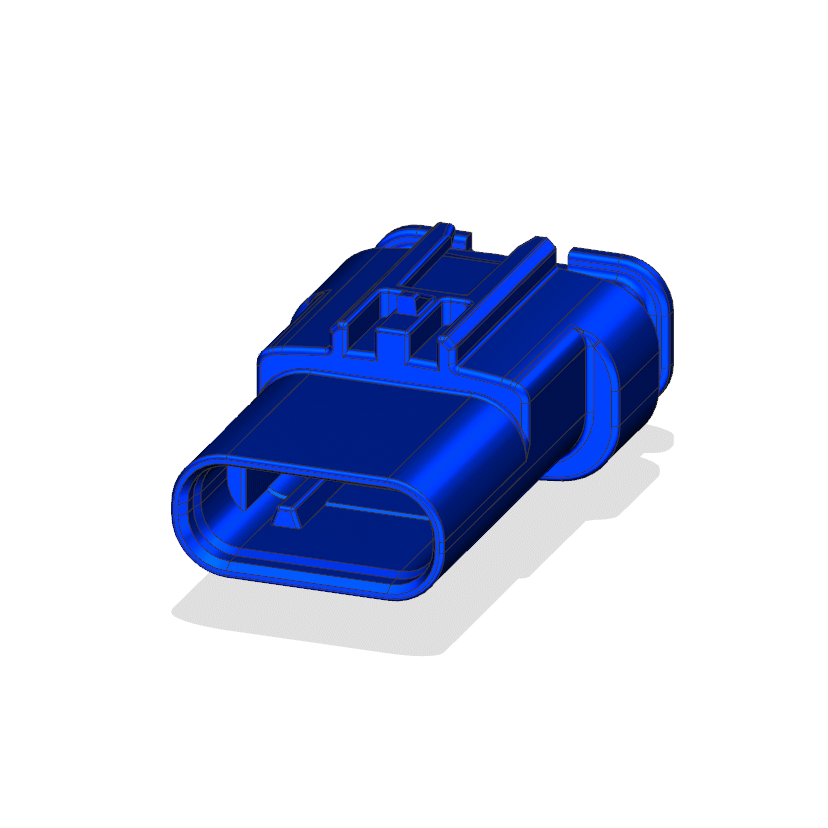

Fig 2: Xy240a Isometric View (Standard)

GCWD1008837

Courtesy of CHRYSLER

Fig 3: Xy240a Wire Insertion View (Standard)

GCWD1009352

Courtesy of CHRYSLER

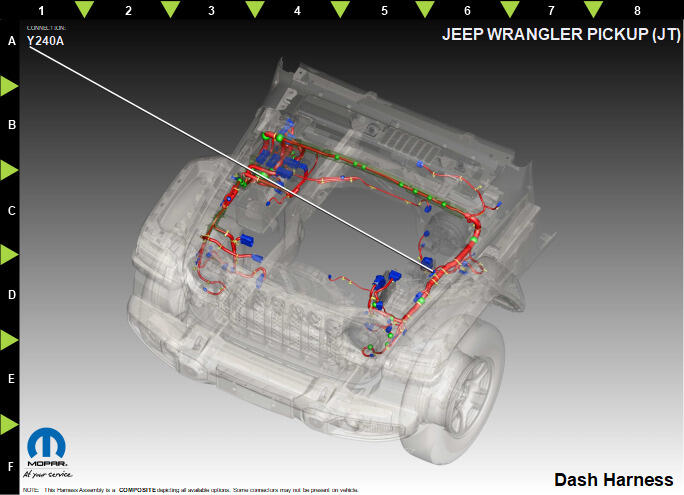

Fig 4: Xy240a Component Location View (Standard)

GCWD1318318

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	W1	BN/BG	0.50	WASHER FLUID LEVEL SWITCH SENSE	N/A
2	W39	BN/VT	0.50	FRONT CAMERA WASHER PUMP MOTOR CONTROL	N/A
3	W11	BN/VT	0.50	LOW WASH SW RTN 1	N/A
4	W18	BN	0.50	FRONT WASHER PUMP MOTOR CONTROL	N/A
