Switch-Parking Brake (Standard) Connector End View (D2269A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 172074-2

Part Description: Not Available

Connector No: D2269A

Option: Standard

Repair Kit Part Number: 68496340AA

Cavity Count: 1

Fig 1: Switch-Parking Brake Connector End View (Standard)

Courtesy of CHRYSLER

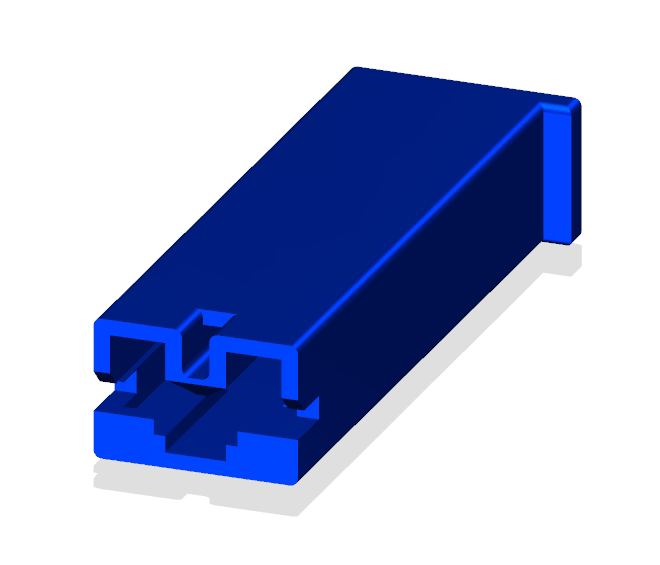

Fig 2: Switch-Parking Brake Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Parking Brake Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Switch-Parking Brake Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	B25	DG/WH	0.50	PARK BRAKE SWITCH SENSE	N/A
