Steering Wheel-Heated (Standard) Connector End View (D2629A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: MALE

Part Number: 1-968699-1

Part Description: Not Available

Connector No: D2629A

Option: Standard

Repair Kit Part Number: 68364266AA

Cavity Count: 2

Fig 1: Steering Wheel-Heated Connector End View (Standard)
GCWD1016839Courtesy of CHRYSLER

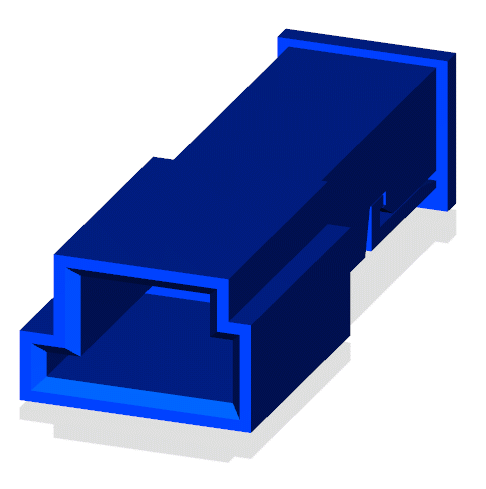

Fig 2: Steering Wheel-Heated Isometric View (Standard)
GCWD1087785Courtesy of CHRYSLER
Fig 3: Steering Wheel-Heated Wire Insertion View (Standard)
GCWD1008567Courtesy of CHRYSLER

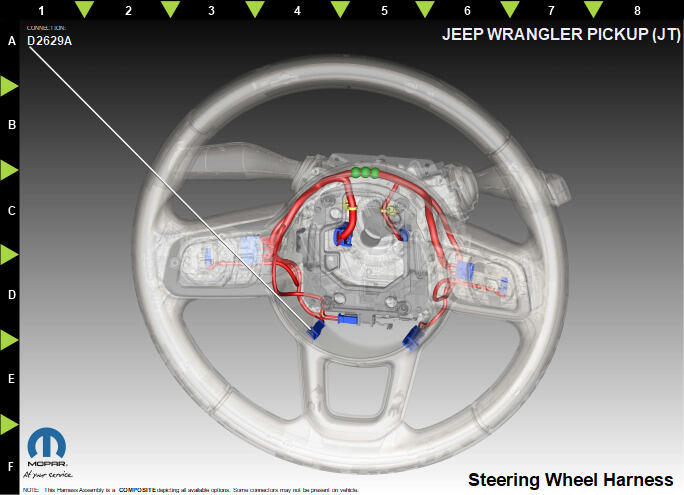

Fig 4: Steering Wheel-Heated Component Location View (Standard)
GCWD1318738Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C92 BG 0.35 HEATED STEERING WHEEL SIGNAL N/A
2 G907 BK 0.35 EVIC MUX RETURN N/A
