Airbag-Passenger Squib 1 (Standard) Connector End View (D6665A)

Harness-Family: Airbag_PAB

Color: GREEN

Gender: FEMALE

Part Number: PPI0001461

Part Description: SRS CONNECTOR AK2 FERRITE - HOUSING LIGHT GREEN

Connector No: D6665A

Option: Standard

Repair Kit Part Number: 68148099AB

Cavity Count: 2

Fig 1: Airbag-Passenger Squib 1 Connector End View (Standard)

Courtesy of CHRYSLER

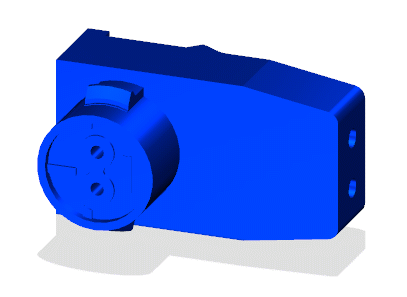

Fig 2: Airbag-Passenger Squib 1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Airbag-Passenger Squib 1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

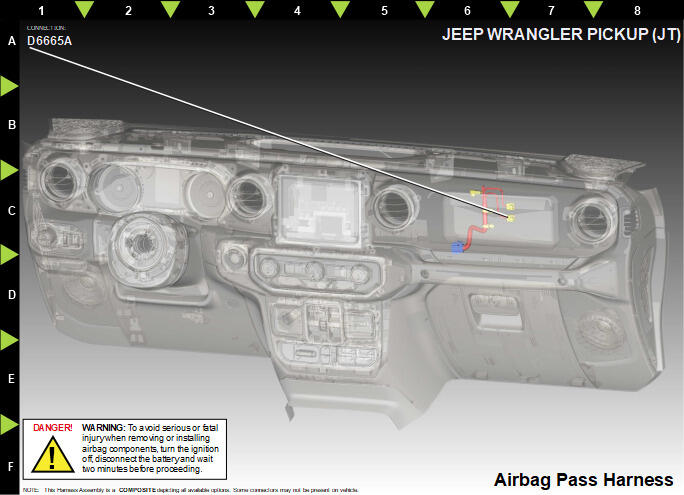

Fig 4: Airbag-Passenger Squib 1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R42	DG/BN	0.50	PASSENGER SQUIB 1 LINE 2	N/A
2	R44	GY/OG	0.50	PASSENGER SQUIB 1 LINE 1	N/A
