Airbag-Driver Squib 2 (Standard) Connector End View (D6663B)

Harness-Family: Airbag_DAB

Color: YELLOW

Gender: FEMALE

Part Number: F960510

Part Description: Not Available

Connector No: D6663B

Option: Standard

Repair Kit Part Number: 68194439AA

Cavity Count: 2

Fig 1: Airbag-Driver Squib 2 Connector End View (Standard)

Courtesy of CHRYSLER

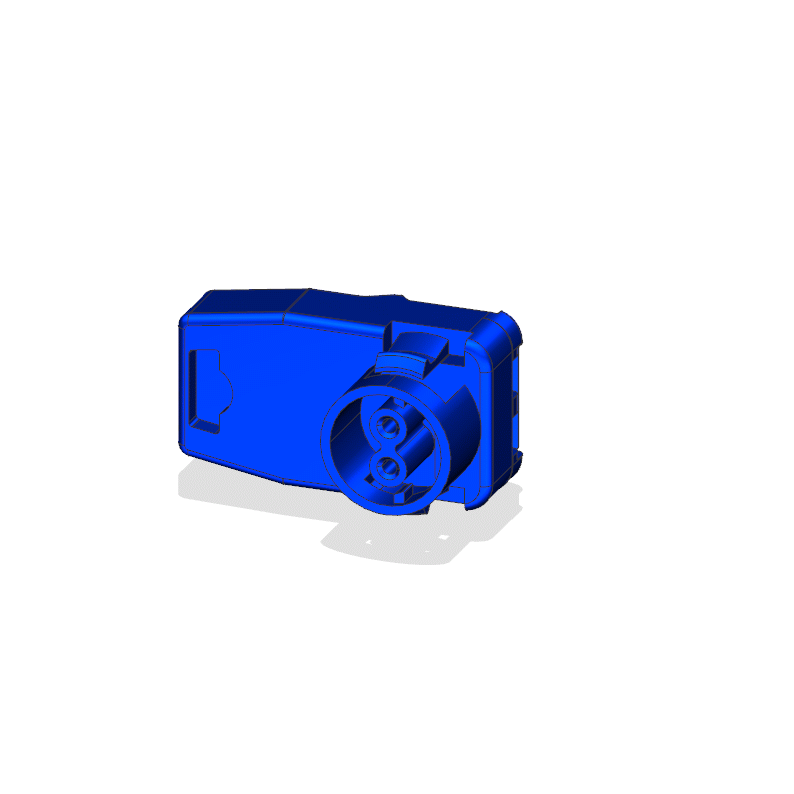

Fig 2: Airbag-Driver Squib 2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Airbag-Driver Squib 2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

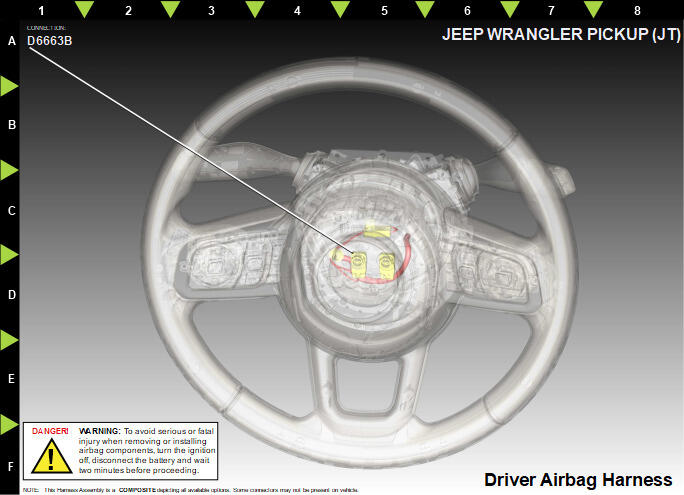

Fig 4: Airbag-Driver Squib 2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R61	GN/VT	0.80	DRIVER SQUIB 2 LINE 2	N/A
2	R63	DB/WH	0.80	DRIVER SQUIB 2 LINE 1	N/A
