Functional Description - EPICYCLIC Gear Sets
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

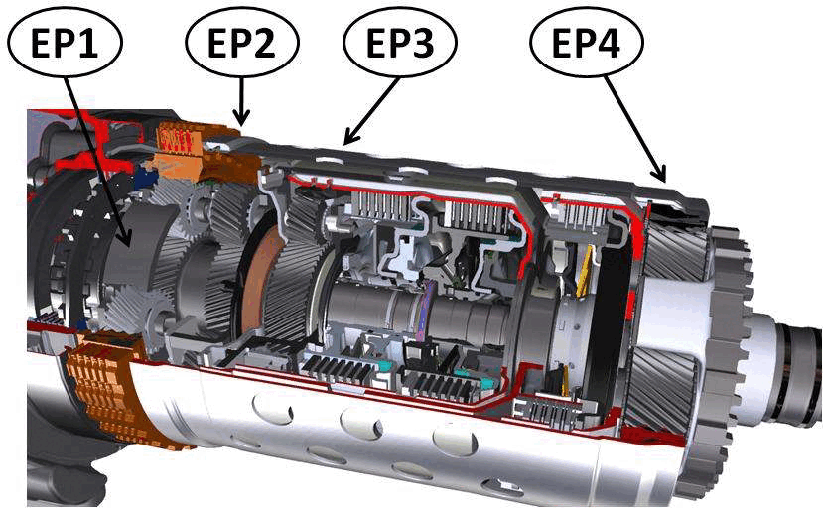

EP1, EP2, EP3, EP4 = Epicyclic gear train.
The 8 forward gears, and reverse are implemented by connecting four single-arm epicyclic gear trains. The two front gear trains have a common sun gear, while the power is always output through the fourth epicyclic gear train planet carrier.
