Removal And Installation: Notes
WARNING: This page is about a different variant/trim than selected.
REMOVAL
- Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- If equipped, remove the skid plate. Refer to PLATE, SKID, REMOVAL AND INSTALLATIONPLATE, SKID, FUEL TANK, REMOVAL AND INSTALLATIONPLATE, SKID, TRANSFER CASE, REMOVAL AND INSTALLATION .
- Position a drain pan underneath the transfer case.
- Remove the transfer case drain plug and drain the lubricant into the drain pan.
- Remove the front and rear propeller shafts. Refer to REMOVAL AND INSTALLATION
.

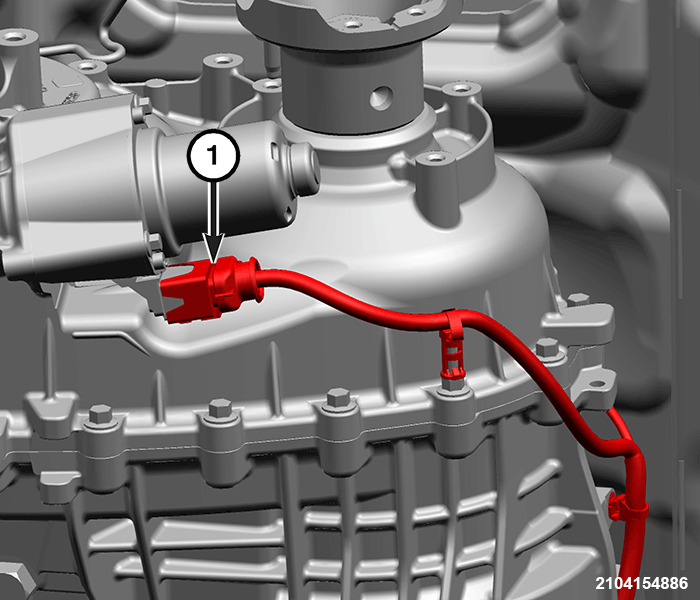

1 - Wire Harness Connector - Disconnect the wire harness connector from the shift motor.

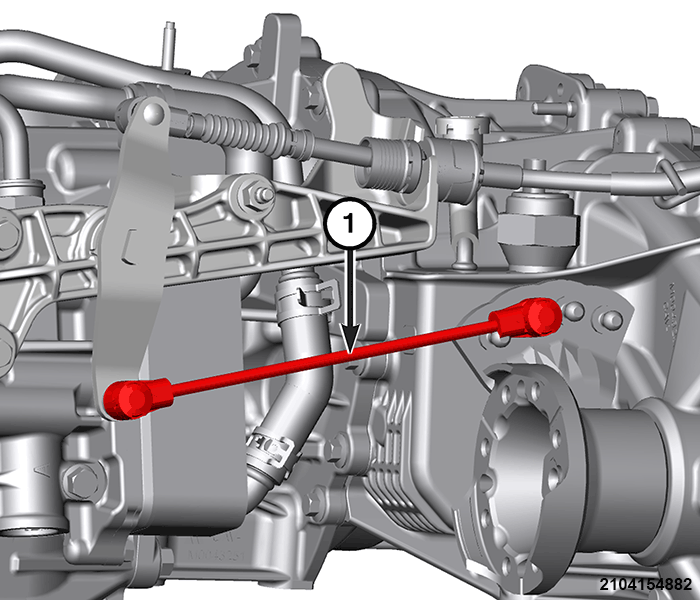

1 - Shift Rod - Disconnect the shift rod at the transfer case.

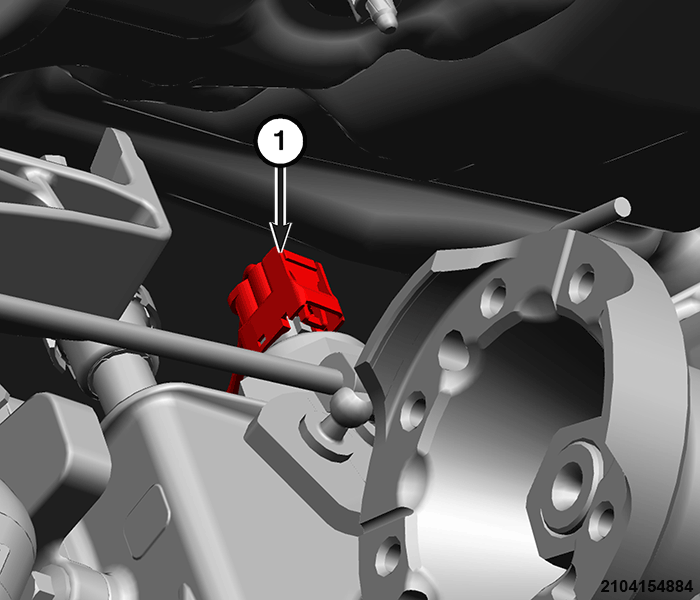

1 - Wire Harness Connector - Disconnect the wire harness connector from the transfer case position sensor.

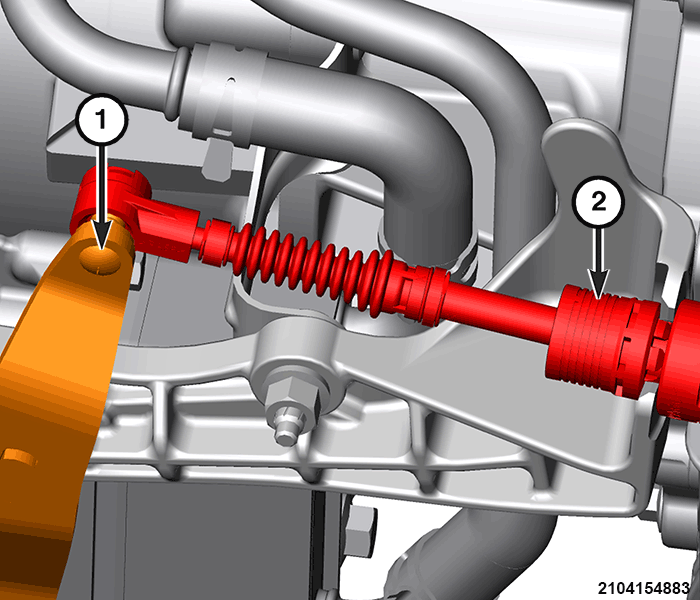

1 - Transfer Case Shift Cable 2 - Ball Stud - Disconnect the transfer case shift cable from the ball stud.

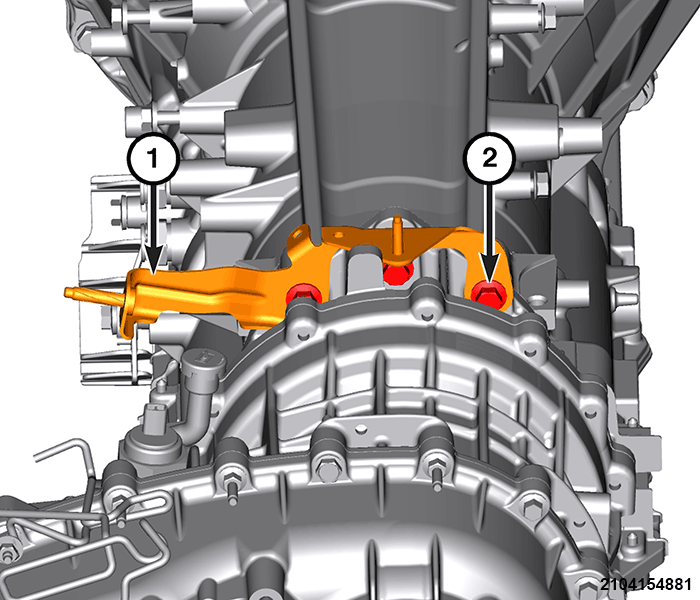

1- Two Bolts And One Nut 2 - Transfer Case Shift Bracket - Remove the two bolts and one nut securing the transfer case shift bracket to the transmission housing.
- Using a suitable jack stand, support the transmission.
- Remove the transmission crossmember. Refer to
CROSSMEMBER, TRANSMISSION, REMOVAL AND INSTALLATION
.

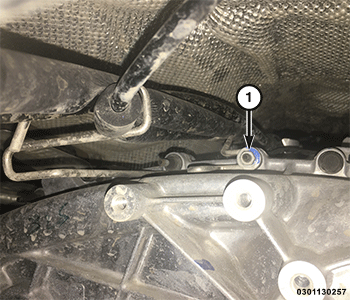

1 - Shift Cable Retaining Bracket Nut - Remove the shift cable retaining bracket nut, then remove the shift cable retaining bracket.
- Using a suitable jack, support the transfer case. Using safety chains, secure transfer case to the jack.

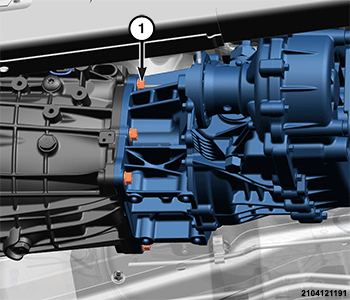

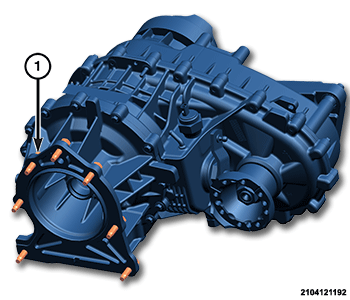

1 - Transfer Case Bolts NOTE:There are seven bolts securing the transfer case to the transmission.
1 - Transfer Case Bolts - Remove the seven bolts securing the transfer case to the transmission assembly.

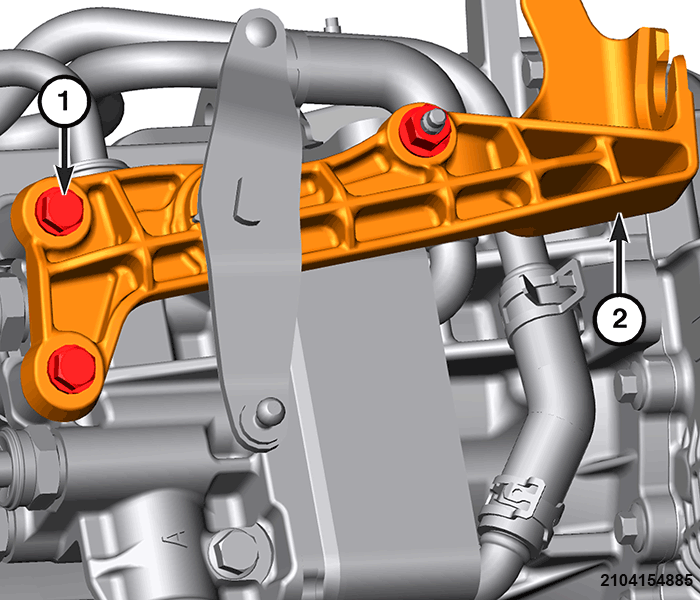

1 - Transfer Case Shift Bracket 2 - Transfer Case Shift Bracket Bolts - Remove the transfer case shift bracket from the top of the transfer case.
- Move the transfer case assembly rearward until it is free of the transmission output shaft.
- Lower the jack and remove the transfer case from under the vehicle.
INSTALLATION
During installation, torque the fasteners to the specifications in the torque table(s) below.
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Fill the transfer case with the specified fluid. Refer to STANDARD PROCEDURE - FLUID DRAIN AND FILL .
TORQUE SPECIFICATIONS
