Description And Operation: Description
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

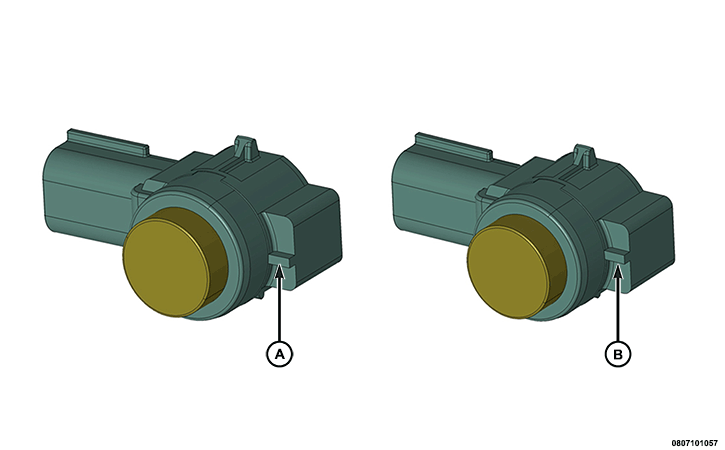

This vehicle is equipped with the 12 channel park assist system that has six park assist sensors installed on the front bumper fascia and six park assist sensors installed on the rear bumper fascia. There are two types of sensors on this vehicle. Type A and type B. Sensor type A and sensor type B have different offset indexing tabs. Each sensor includes the sensor mounting bracket, the sensor spacer and the sensor wiring connection.

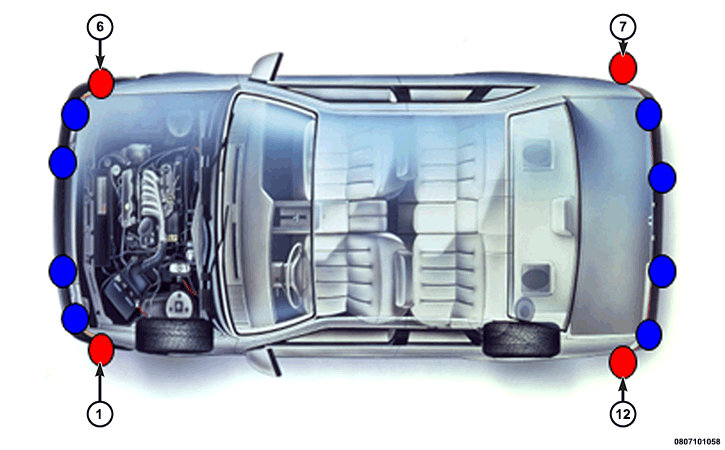

On this model, the red sensors 1, 6, 7 and 12 are type B and the blue sensors are type A.
