Description And Operation: Inspection
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The Oil pump is released as an assembly. The assembly includes both the pump and the solenoid. There are no serviceable sub-assembly components. In the event the oil pump or solenoid are not functioning or out of specification they must be replaced as an assembly.

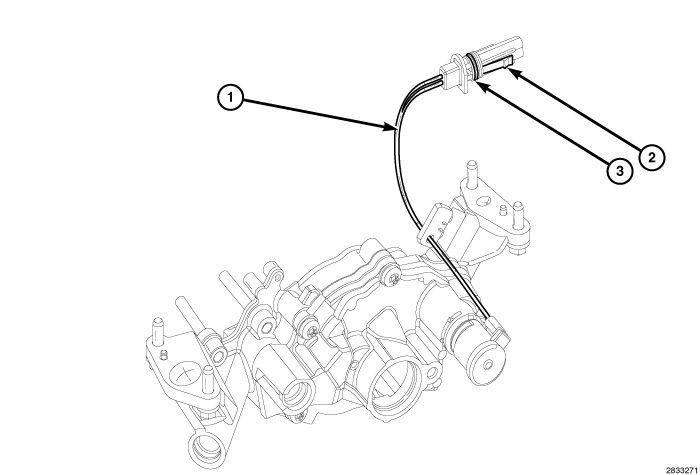

- Inspect the solenoid wires (1) for cuts or chafing.
- Inspect the condition of the connector O-ring seal (3).
