Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Lightly lubricate the new O-ring seal with engine oil and install on the oil pick-up tube.

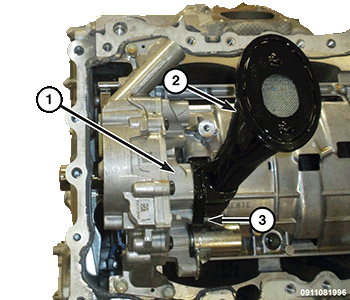

- Install the oil pick-up tube (2) and tighten the bolt (3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
- Install the oil pan. Refer to PAN, OIL, REMOVAL AND INSTALLATION .
- If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to OIL, STANDARD PROCEDURE .
- Run the engine until it reaches normal operating temperature.
