Valve Spring

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

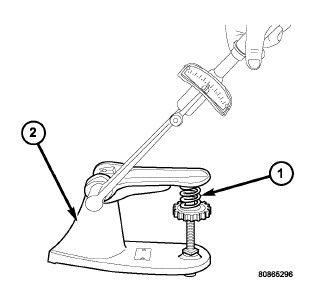

1 - Valve Spring

2 - Test Fixture

When valves have been removed for inspection, reconditioning or replacement, valve springs should be checked against specifications for free-length, spring force and spring installed height. Refer to ENGINE SPECIFICATIONS .

Spring force can be measured with a test fixture. Follow the tool manufactures instructions. Replace any springs that do not meet specifications.

Courtesy of CHRYSLER GROUP, LLC

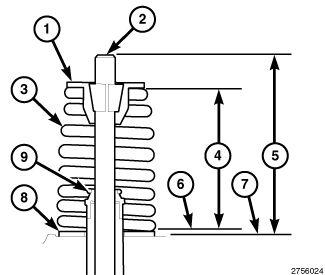

1 - Spring Retainer

2 - Valve Stem

3 - Valve Spring

4 - Valve Spring Height

5 - Valve Stem Tip Height

6 - Spring Seat

7 - Cylinder Head

8 - Second Spring Seat

Installed height of the valve spring must be checked with the valve assembled into the cylinder head.

If the valves or valve seats have been refinished and the installed valve spring height is greater than 41.0 mm (1.61 in.), install a second spring seat in the head counter bore under the original valve spring seat to bring the spring height within proper specification. Make sure the measurement is taken from the top of spring seat to the bottom surface of spring retainer.
