Port-Media C1 (Standard) Connector End View (D2470A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 7287-0492-40

Part Description: 6P 1.5 + 2P 2.8 KAIZEN YESC SUB ASSEMBLY

Connector No: D2470A

Option: Standard

Repair Kit Part Number: 68068651AA

Cavity Count: 8

Fig 1: Port-Media C1 Connector End View (Standard)

Courtesy of CHRYSLER

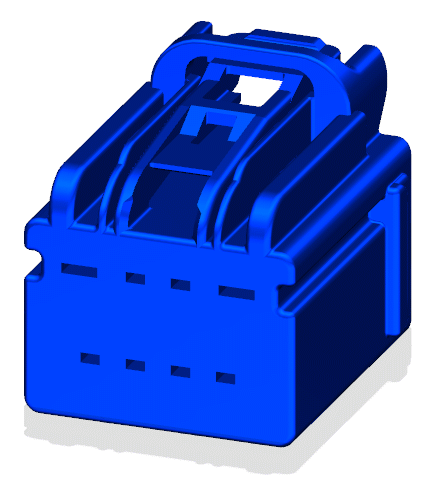

Fig 2: Port-Media C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Port-Media C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Port-Media C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A236	RD/DG	0.75	FUSED B(+)	N/A
2	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
3	Z912	BK/OG	0.75	GROUND	N/A
4	Z912	BK/GN	2.5	GROUND	N/A
5	X486	GN/BG	0.35	AUX AUDIO LEFT SIGNAL	N/A
6	X487	GN/BU	0.35	AUX AUDIO RIGHT SIGNAL	N/A
7	X488	GN/DB	0.35	AUX AUDIO COMMON	N/A
8	X489	GN/YE	0.35	AUX AUDIO DEVICE DETECT SIGNAL	N/A
